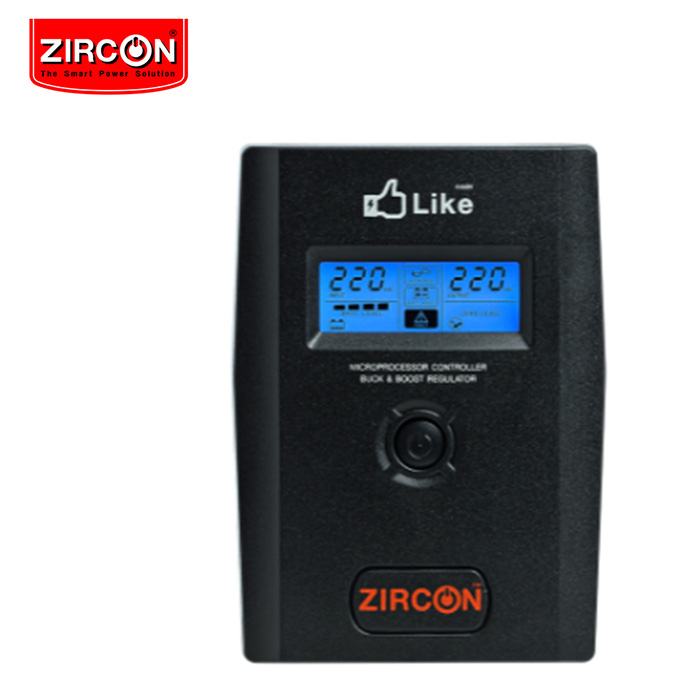

ZIRCON เครื่องสำรองไฟ Line Interactive UPS 1kVA/700W รุ่น PI-1kVA/700W
- Zircon Line Interactive UPS/ Pi-1000/ 1000VA/700W/ Sinewave, Digital Display (Tower type)
- New technology Pure wave form PURE SINE WAVE
- UPS: LINE INTERACTIVE WITH STABILIZER
- Precise control with MICROPROCESSOR
- With STABILIZER (AVR) system for automatic pressure adjustment
- There is a modern LCD display screen DISPLAY.
- Service available on SITE SERVICE * Terms and conditions apply.
- 2 year warranty. Free labor, spare parts.
Specifications
| Rating |
VA
WATT |
1000VA
700W |
| Input |
Voltage
Frequency |
220 VAC +/-25%
50/60Hz. +/-10% (Auto Sensing) |
| Output |
Voltage
Frequency
Wave Form |
220 VAC +/-10%(AVR), +/-5%(Battery)
50Hz. +/-0.1%
Pure Sine Wave |
| System Protection |
System Design
Transfer Time
Surge Energy Dissipation
Noise Filter
Overload & Short Circuit |
Line Interactive UPS with Stabilizer, Microprocessor Control
Typical 2 ms.
320 Joules (6500A)
EMI Suppression
Reset Fuse Protection |
| Battery |
Type
Battery
Recharge Time
Backup Time |
Maintenance Free Sealed Lead-acid Battery
1-1.2kVA 12V 7.8X2 / 1.5kVA 12V 9.0X2 / 2kVA 12V 9.0X2
4-6 Hours (90% After Fully Discharged)
15-60 Min./ 5 Min at Full Load |
| Indicator |
LCD Display |
AC Mode, Battery Mode, Input Voltage, Output voltage, Battery Level,
Charging Battery, Load Level, Low Battery, Overload, Fault & Battery Replace |
| Environment |
Ambient Temperature
Audible Noise
Relative Humidity
Safety
Electromagnetic Compatibility |
0 to +40 ºC
< 45db(1 Meter)
90% (Non-Condensing)
IEC/EN62040-1;IEC/EN60950-1
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;
IEC61000-4-6;IEC61000-4-8
|
| Software |
USB Port |
Window 2000, 2003, XP, Vista, 2008, 7, Linux, Unix, Max |
| Standard |
Regular Approvals |
TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS |
| Dimensions |
WxDxH (mm.) |
338x149.5x162 |
| Weight |
Kilogram |
7.8 kg. |
