OVERVIEW

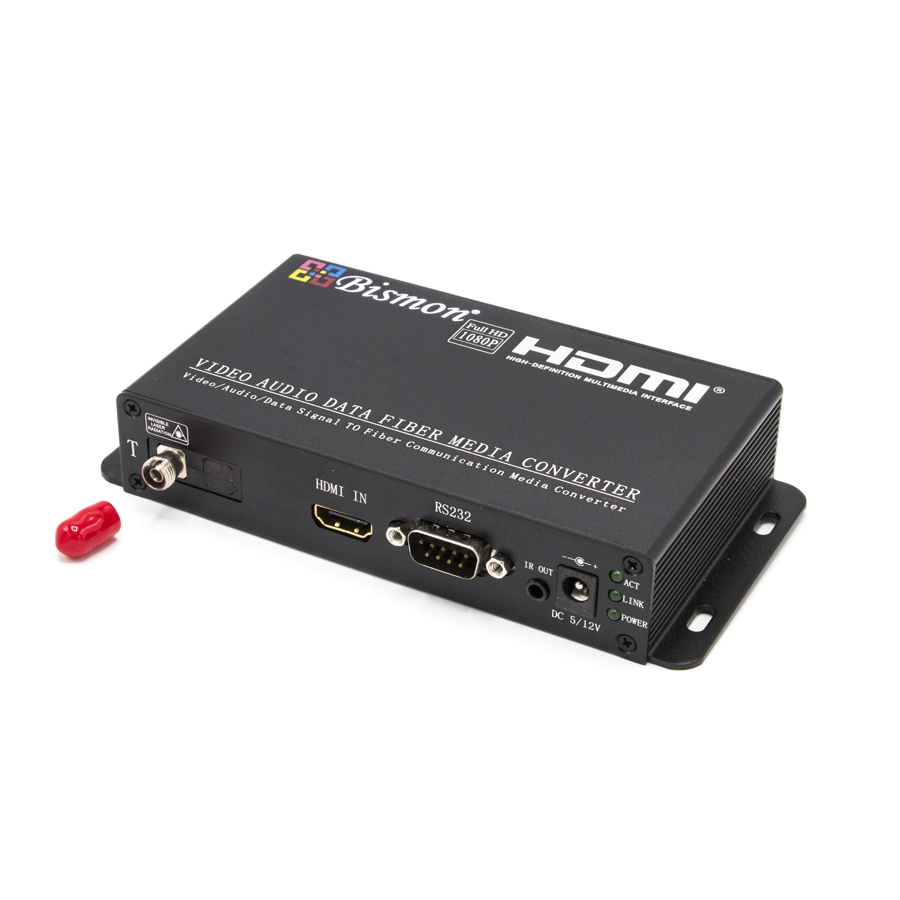

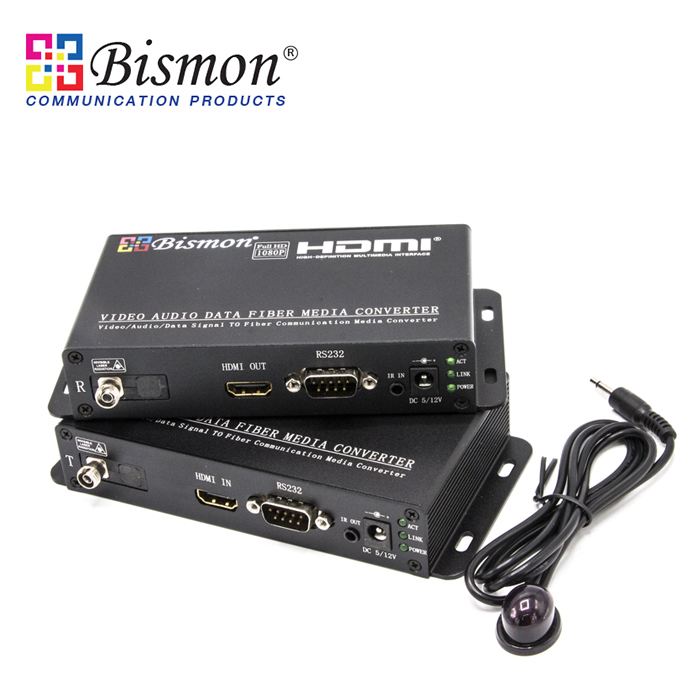

HDMI TO FIBER CONVERTER HDMI TO FIBER EXTENDER includes a transmitter and a receiver, which can extend HDMI, RS232 and IR signal to a remote location over single fiber cable.

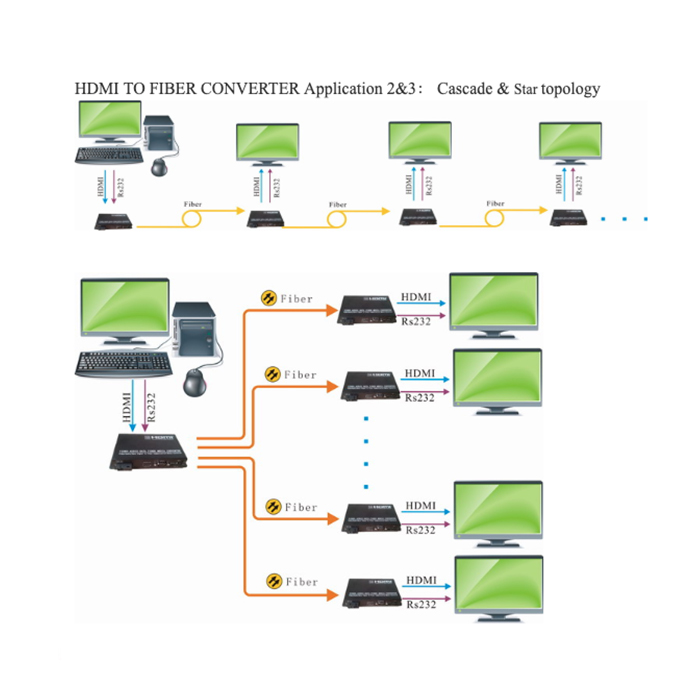

Through the cascade or star type optical fiber cabling, the realization of a signal source transmitting, receiving a large screen display. The cascaded mode between each node only through the 1 optical fiber connection, reduce the complexity of the proposal, to reduce the difficulty of construction, unlimited number of nodes cascade, the transmission distance can be up to 0-100 km, there is no transmission distance problem using splitter solution on the market. Compact size, low power consumption (<3W), can work stably at 70C high-temperature environments. Very suitable for application and subway station, airport, station, gymnasium.
HDMI TO FIBER CONVERTER support DVI/HDMI video and audio transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 100KM(SM fiber cable).
HDMI TO FIBER CONVERTER can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia, and public utilities, etc.
Product feature:
1, Support 1920×1080@60Hz
2, Max extension distance 2KM (MM fiber)/100KM (SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operating systems, support plug, and play
4, Support DVI/HDMI interface
5, RS232 and IR function
![](http://www.bismon.com/pic_product/pic_gall/B1-HDMI-1V-20 1-CH HDMI Video Converter, RS232-IR remote Single fiber.jpg)
![](http://www.bismon.com/pic_product/pic_gall/HDMI to Fiber optic cable-T.jpg)
![](http://www.bismon.com/pic_product/pic_gall/diagram HDMI.jpg)
![](http://www.bismon.com/pic_product/pic_gall/HDMI Applications converter fiber optic.jpg)
Specification:
• I/O connector: HDMI / DVI
• HDMI version: HDMI1.1.2.1.3
• HDCP: HDCP1.2
• HDMI resolution: 1080p/1080i/720p/720i/576p/576i/480p/480i
• Video color format: 24 bit/deep color 30bit/deep color 36bit
• Audio format: DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
• TMDS: 0.5-1.5Vp-p(TTL)
• Input cable length: <20m AWG26 HDMI 1.3 standard cable
• Output cable length: <20m AWG26 HDMI 1.3 standard cable
• Optical connector: SC/FC/ST
• Wavelength: 850/1310/1550nm
• Physical: Size: 157x81x29mm, Aluminum case, color black
• N.W: 0.7kg
• Power voltage: 5-12V DC, consumption 3W
• Working temptation: -20 C to 70 C
