OVERVIEW

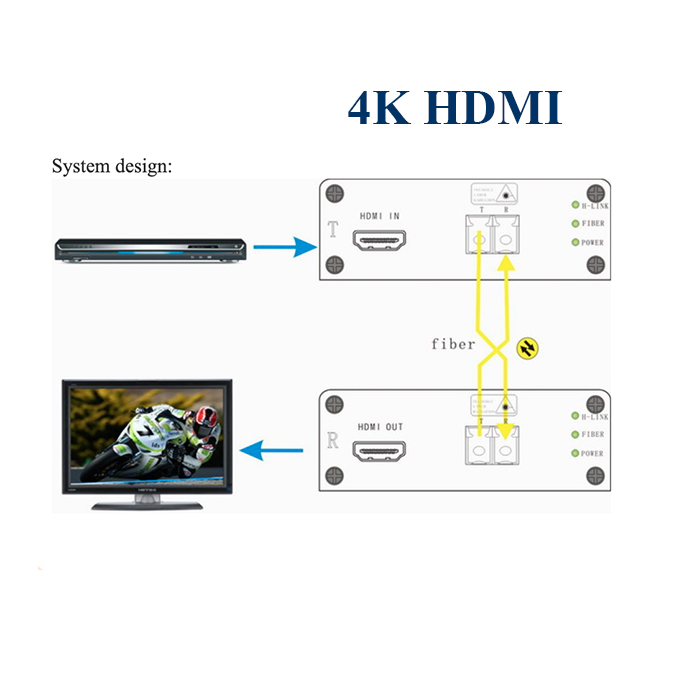

4K HDMI Fiber Optic Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution 4K HDMI or DVI signals over fiber cable while maintaining flawless image quality. An 4K HDMI input signal from a source device such as a set-top box or Blu-Ray player is converted into light pulses by an optical transmitter module for transmission over two (2) strands of fiber optic cable. On the display side, an optical receiver module converts the light pulses back to an 4K HDMI signal for display on a monitor or projector.

The 4K HDMI Fiber Optic Extender supports optical links using either multi-mode or single-mode fiber. These features make the equipment a powerful solution for digital display applications that require flawless signal quality over extremely long cable runs.

Product feature:

1, Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p

2, Max extension distance 300M (OM3 MM fiber)/10KM (SM fiber)

3, Supports 1080p resolution with color depth up to 16 bits/pixel

4, Supports 4K HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
