Online Twisted Pair HDCVI/HD - TVI/AHD/CVBS Protection in 1U rack mounting Device
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, DCR, Camera etc.

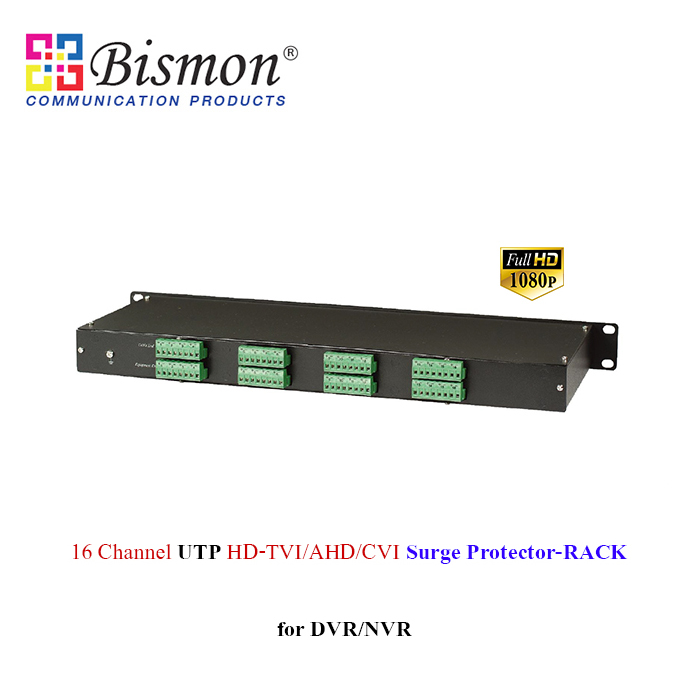

SP016HDT: 16 Channel UTP HDCVI/HD - TVI/AHD/CVBS Surge Protection For DVR in 1U Rack Mounting Panel
• Design to work with twisted pair cabling transmission.
• 16 terminals to 16 terminals.
• Provide protection for analog HDCVI, HD-TVI, AHD camera, DVR devices.
• Comply with IEC 61000-4-5.
• Built in EFT (impulse noise), lightning protection.
Application:
• CATV System
• Antenna of Television
• Video Cassette Recorders
• FM receivers
• HD - CVI/TVI/AHD Cameras and monitors
Recommend Cable
Link cable recommend to use high quality 75Ω Coaxial Cable & BNC connector, to use low quality coaxial cable may case signal loss and effect transmission distance and reliability.
Specification: SP016HDT
• Input and output interface: input Terminal x 16, Output Terminal x16
• Surge protection attack time: < 1nS
• Starting voltage surge: 6V
• Maximum clamping voltage: 25V
• Reference standard: IEC 61000 - 4 - 5
• Signal insertion loss: 0.8dB @ 42 MHz
• Maximum discharge current: 15KV (Max)
• Environmental specifications: Operation: -40 to 85 C
• Dimensions (mm): 483x185.5x44(1U) (Standard 1U Rack Panel)
• Weight (g): 2200
