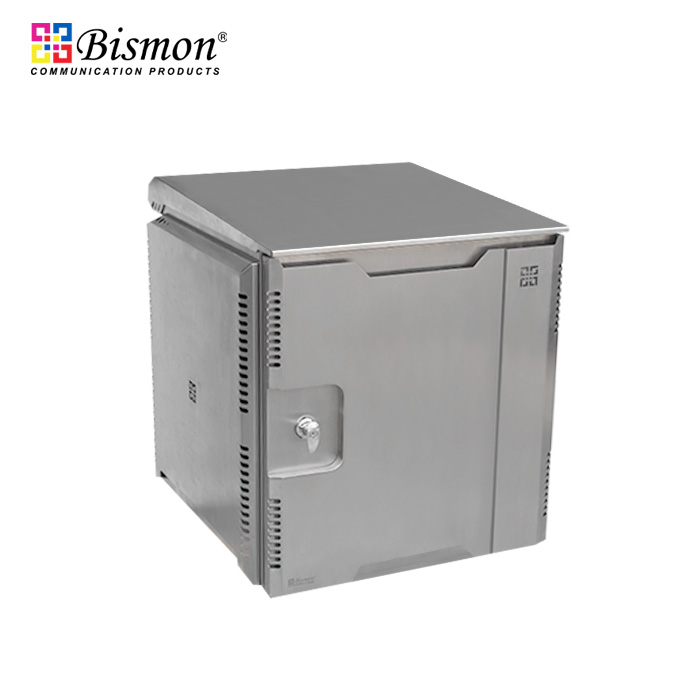

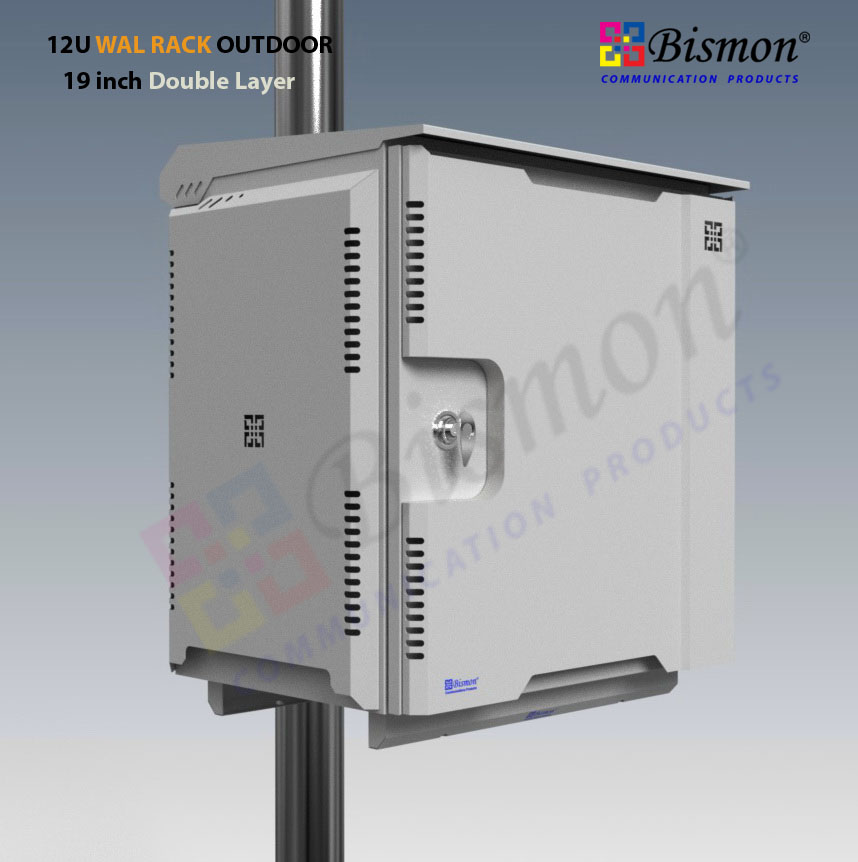

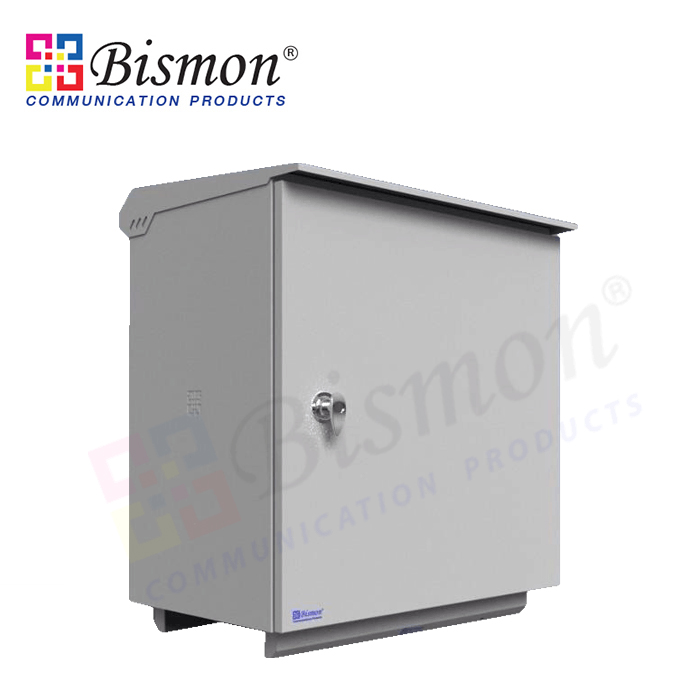

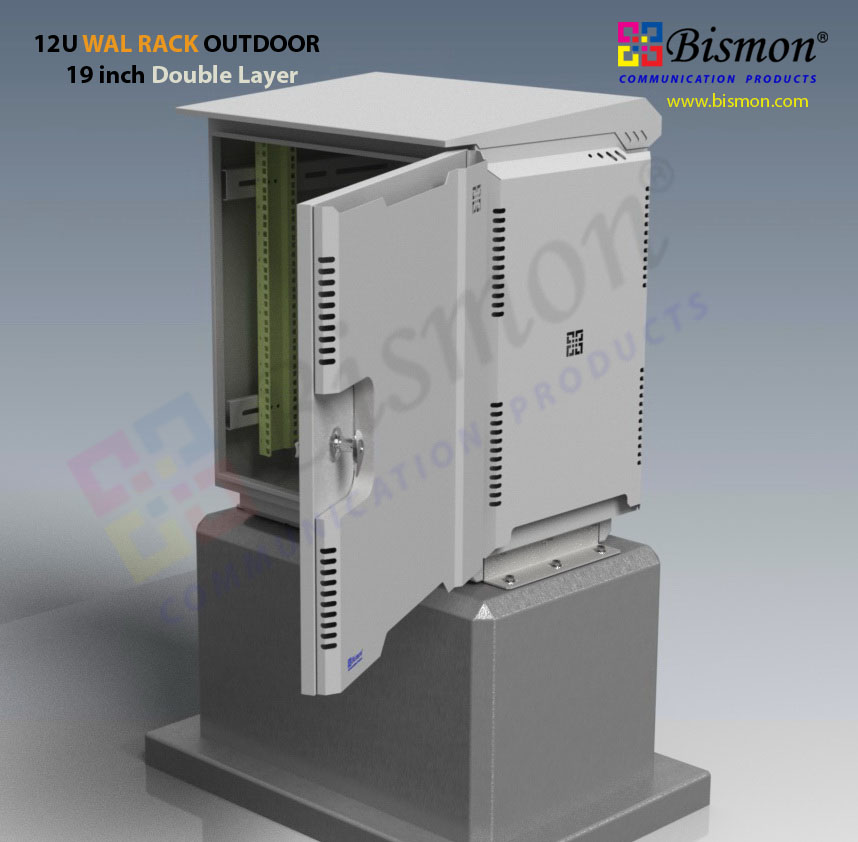

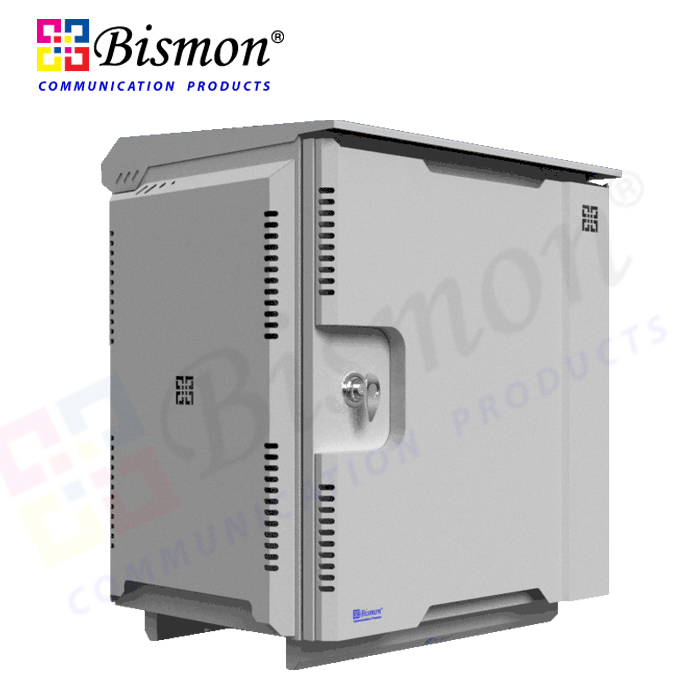

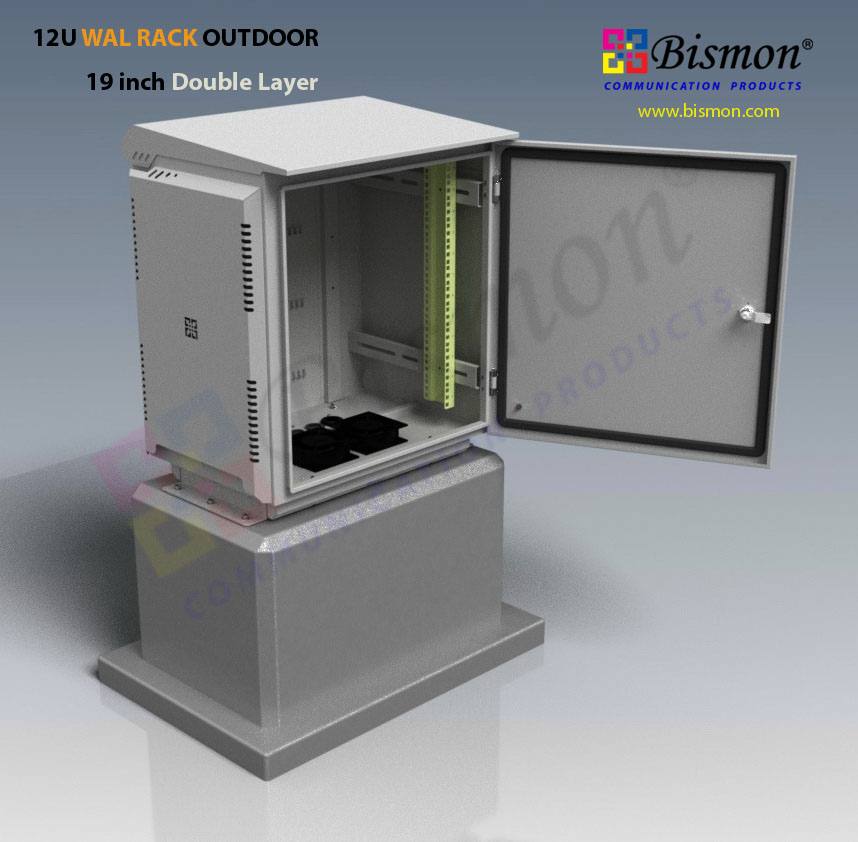

19" Wall Rack 12U Outdoor (60cm) Double Layer (Stainless)

Part number : B1-WM12U-OUT6-RT

Brand : BISMON

Price : 57,668.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

12U 19"Wall Rack Outdoor (60cm) Double Layer (Stainless) fiber optic made of EG steel high quality and a long time for use. The Cabinet can compliant with IP55 or IP65 standard. they can accommodate the ODF fiber panel 1U or 3U. Cable entry 5 port and use 2 port cable glands EG/PG29 depend on cable dia. The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment.

Brand	Bismon
Model	B1-WM12U-OUT6-RT
Equipment Type	Wall rack outdoor
Size	676 mm x 600 mm x 600 mm (HighxWidthxDepth)
Standard	Compliant IP55, IP65
Color

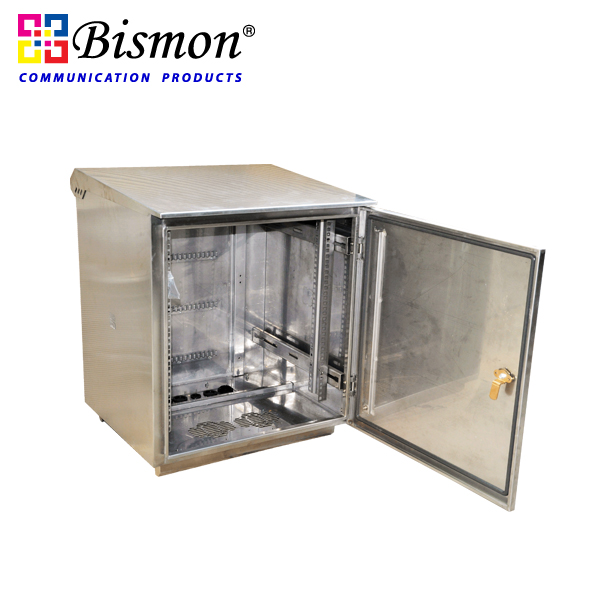

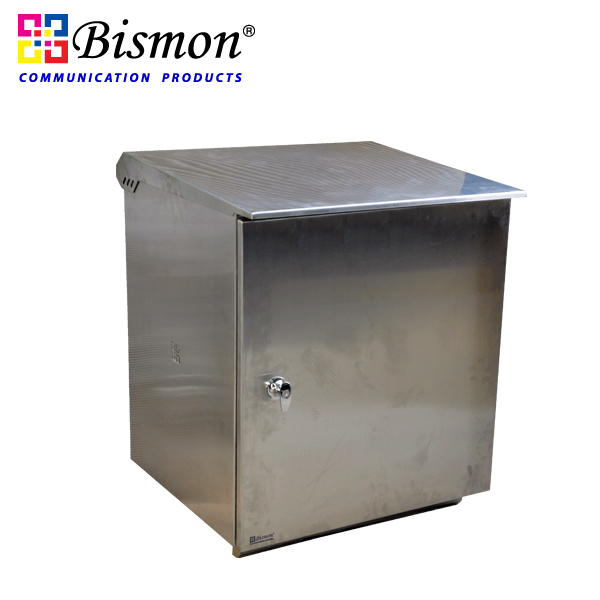

Material	stainless steel high grade
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifers, broadband equipment
Features	• 19 inch support for rack style standard, 12U High
	• Double Layer for 3 wall outside protect UV direct to wall side and cooling by holes
	• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets”
	style, not rubber style
	• Double folded gutter at door frame to increase rigidity and prevents water from enter
	• All screw or nut made of stainless steel

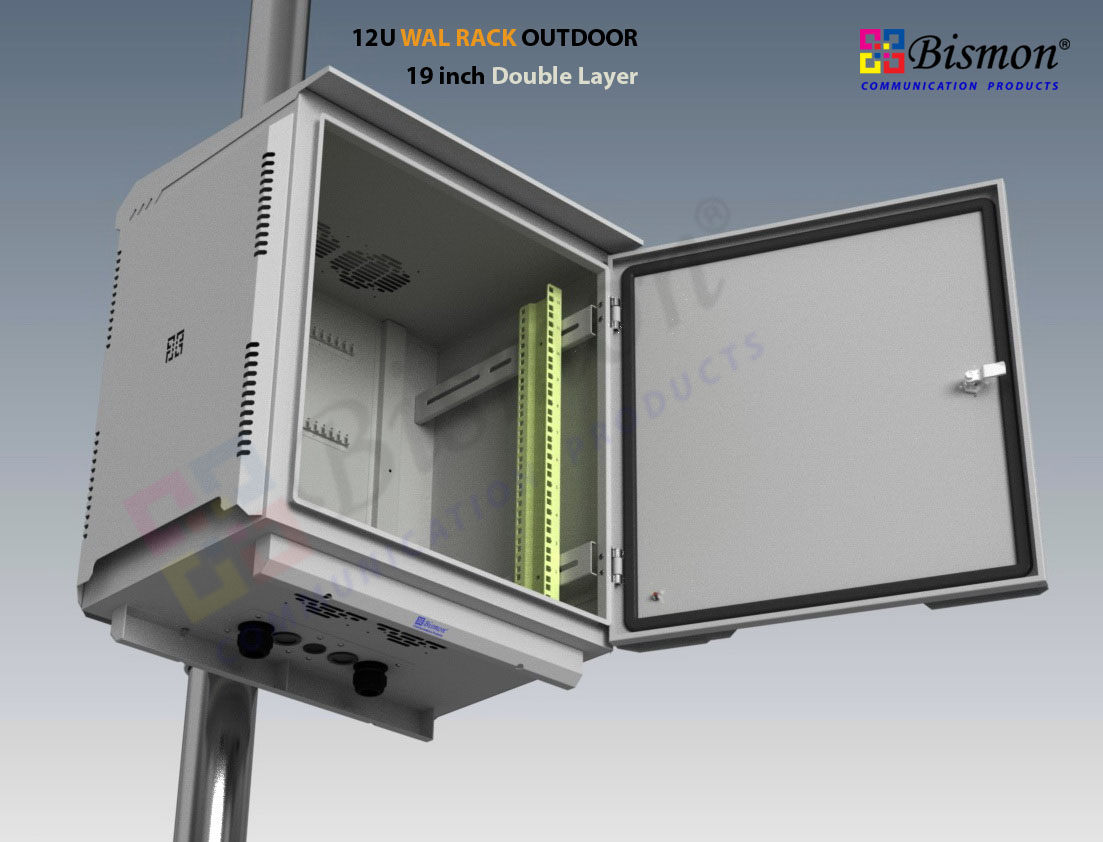

	• Can support rack mount 1U or 3U patch panel fiber optic max capacity: 12U
	• Can support cable entry 5 port and 2 cable grands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 2x4inch for air flow, 2 point (Top & Bottom Rack) Max:4 pcs

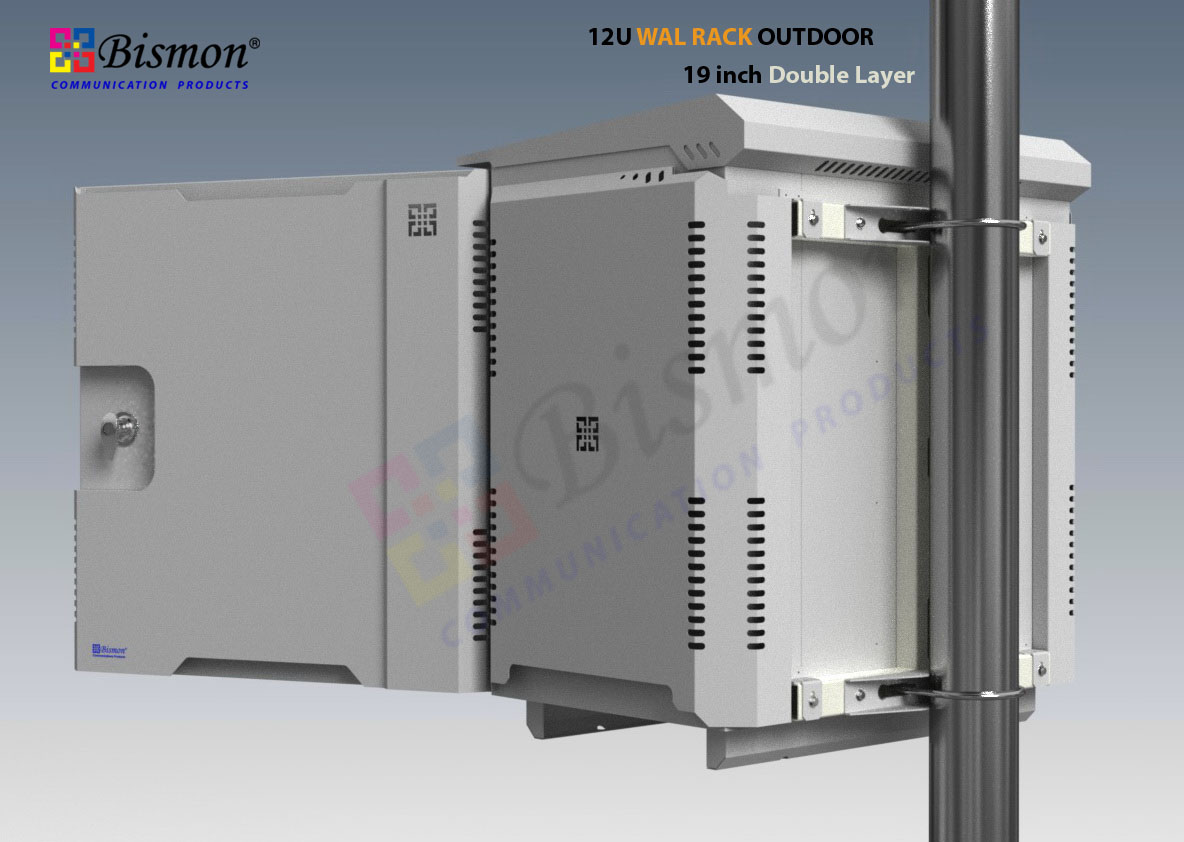

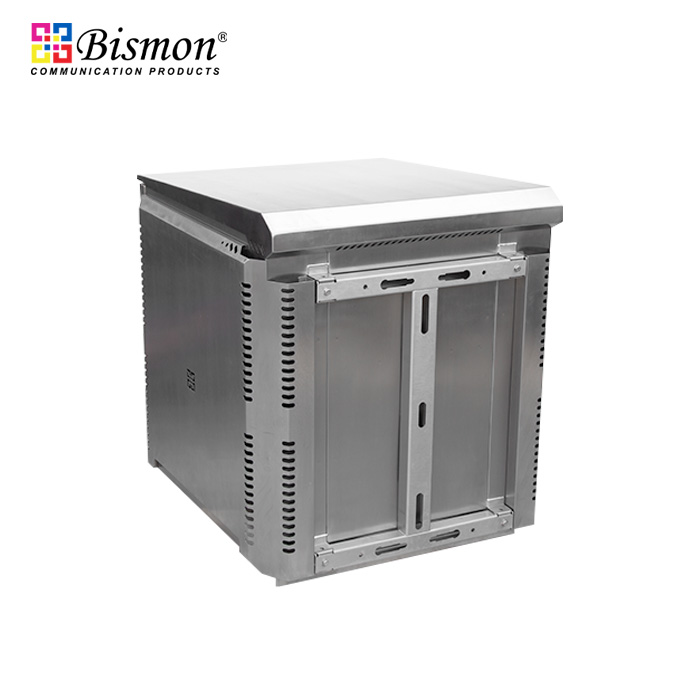

	• Complete set tools for hang on pole and support 4 hole for wall type

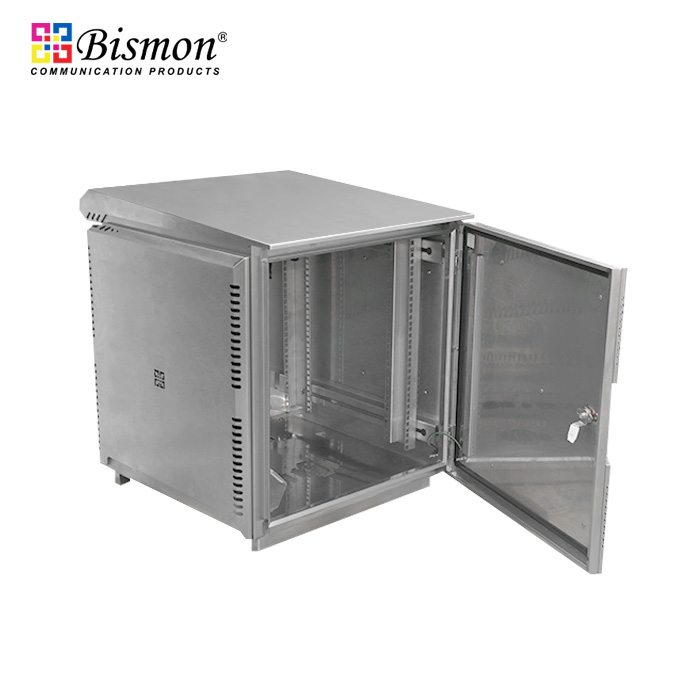

	• Can support hinges provide 130 deg. door opening
	• Support grounding at door, side cover, and cabinet frame
	• Surface finished cabinet with epoxy-polyester coating
Option (Made to order)	สินค้าสั่งผลิต Material:SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum
