19" Wall Rack 12U Outdoor Fiber optic (50cm)

Part number : B1-WM12U-OUT5

Brand : BISMON

Price : 16,332.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

19" Wall Rack 12U Outdoor Fiber optic (50cm) fiber optic made of EG steel high quality and a long time for use. The Cabinet can compliant with IP55 or IP65 standard. they can accommodate the ODF fiber panel 1U or 3U. Cable entry 5 port and use 2 port cable glands EG/PG29 depend on cable dia. The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment.

Brand	Bismon
Model	B1-WM12U-OUT5
Equipment Type	Wall rack outdoor
Size	676 mm x 600 mm x 500 mm (HighxWidthxDepth)
Standard	IP55 standard
Color
Material	(EG)-Electro Galvanised Steel
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment
Features	• 19-inch support for rack style standard, 12U High
	• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets”
	style, not rubber style
	• Double folded gutter at door frame to increase rigidity and prevents water from entering
	• All screw or nut made of stainless steel
	• Can support rack-mount 1U or 3U patch panel fiber optic max capacity: 9U
	• Can support cable entry 5 port and 2 cable glands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 2x4inch for airflow, 2 points (Top & Bottom Rack) Max:4 pcs

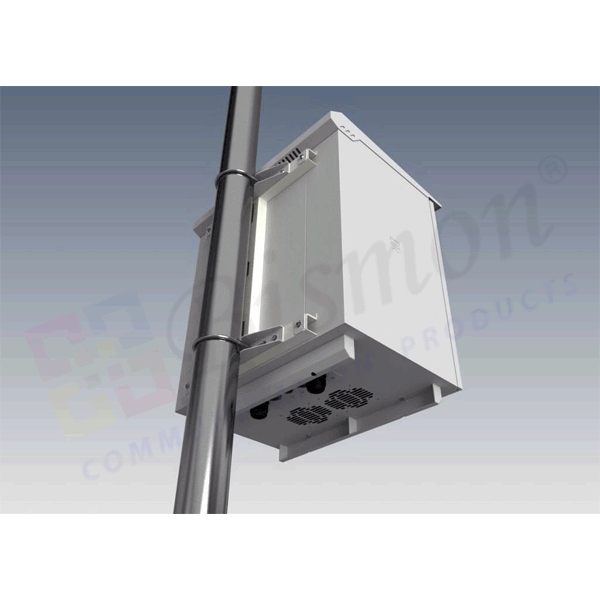

	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support hinges provide 130 deg. door opening
	• Support grounding at door, side cover, and cabinet frame
	• Surface finished cabinet with epoxy-polyester coating
Option (Made to order)	สินค้าสั่งผลิต Material: SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum
