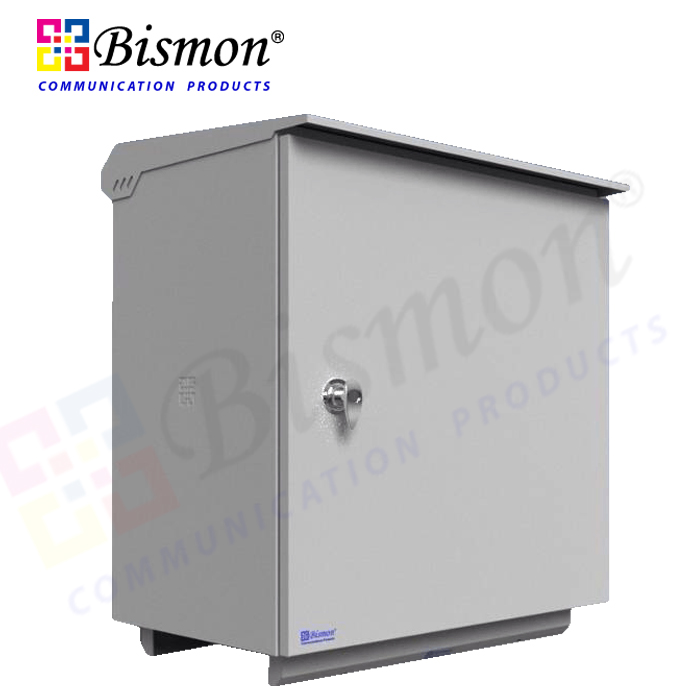

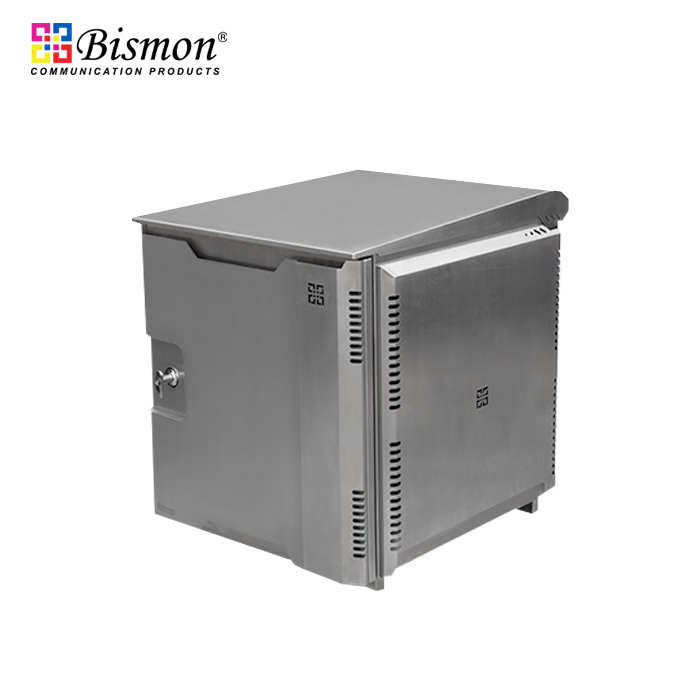

19" Wall Rack 12U Outdoor (40cm) Double Layer (Stainless)

Part number : B1-WM12U-OUT4-RT

Brand : BISMON

Price : 53,668.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

12U 19"Wall Rack Outdoor (40cm) Double Layer (Stainless) high quality and a long time for use. Double Layer can protect UV direct to the wall side and cool by holes around, can extend equipment inside. They can compliant with IP55, IP 65 standard. they can accommodate the ODF fiber panel 1U or 3U. Cable entry 5 port and use 2 port cable glands EG/PG29 depend on cable dia. The cabinet can support fiber

Specification

Brand	Bismon
Model	B1-WM12U-OUT4-RT
Equipment Type	Wall rack outdoor
Size	676 mm x 600 mm x 400 mm (HighxWidthxDepth)
Standard	IP55 standard
Color
Material	stainless steel high grade
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment
Features	• 19-inch support for rack style standard, 12U High
	• Double Layer for 3 wall outside protect UV direct to wall side and cooling by holes
	• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets”
	style, not rubber style
	• Double folded gutter at door frame to increase rigidity and prevents water from enter
	• All screw or nut made of stainless steel
	• Can support rack-mount 1U or 3U patch panel fiber optic max capacity: 12U
	• Can support cable entry 5 port and 2 cable grands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 2x4inch for airflow, 2 points (Top & Bottom Rack) Max:4 pcs
	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support hinges provide 130 deg. door opening
	• Support grounding at door, side cover and cabinet frame
	• Surface finished cabinet with epoxy-polyester coating
Option (Made to order)	Material: SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum
