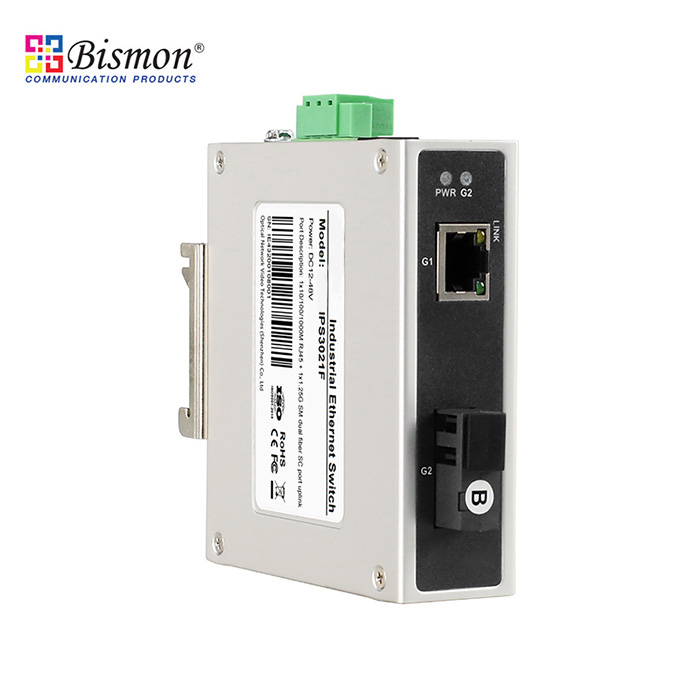

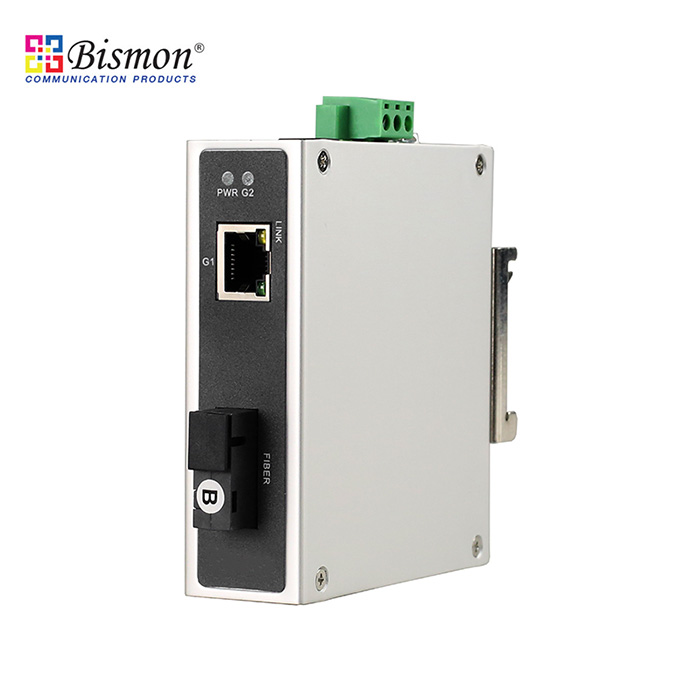

1Port 10/100/1000M with 1xSC-Single fiber, SM 20km(1310nm) Industrial switch(A)

Part number : B1-IPS3021PF-A

Brand : BISMON

Price : 2,260.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

Warranty : 3 Year

OVERVIEW

The B1-IPS3021PF-A is a gigabit industrial PoE fiber switch independently developed by ONV. It has 1*10/100/1000Base-T adaptive RJ45 port and 1*1000Base-X uplink SC-Single- fiber port SM 20km. Port 1 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP cameras, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit access, uplink SC fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and SC-Single-fiber port 1310nm(A) combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 1*10/100/1000Base-T RJ45 port can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.

Stable and reliable

- CCC, CE, FCC, RoHS.

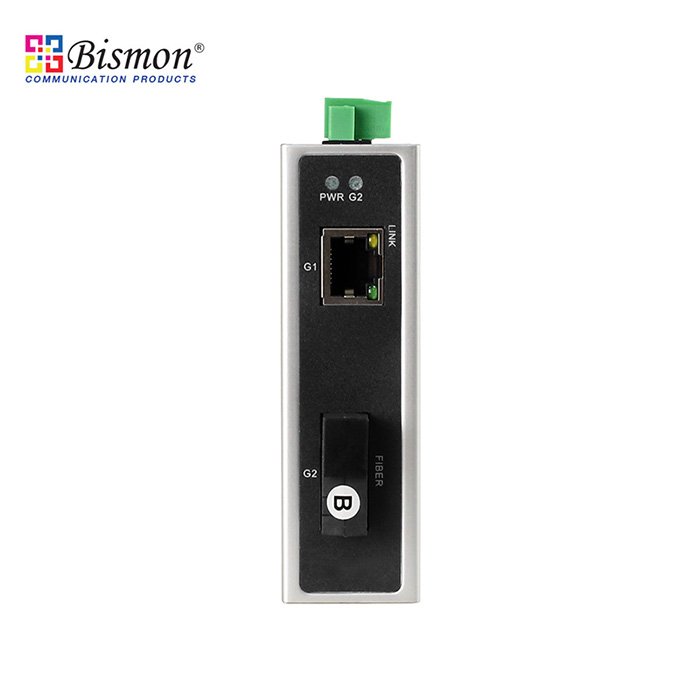

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION

TECHNICAL SPECIFICATION

Model	B1--IPS3021PF-A
Interface Characteristics
Fixed Port	1DC5521 power socket 11000Base-X uplink SC Single fiber port (Data) 1310nm(A) 1*10/100/1000Base-T PoE ports (Data/ Power) 2 sets V+, V- redundant DC power port (3P Phoenix terminal)
Ethernet Port	Port 1 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP ( ≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Optical module is single-mode single fiber 20km, SC port(1310nm(A)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate @64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216B
LED Indicator	Power: PWR (Green), PoE: PoE (Green), Fiber port: G2(Green), Network: Link (Yellow)
PoE & Power Supply
PoE Port	Port 1
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<1W, Full load af<15, at<30W
Operating Voltage	DC44-56V, 3P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 36W/48V industrial power supply
Physical Parameter
Operation TEMP/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg

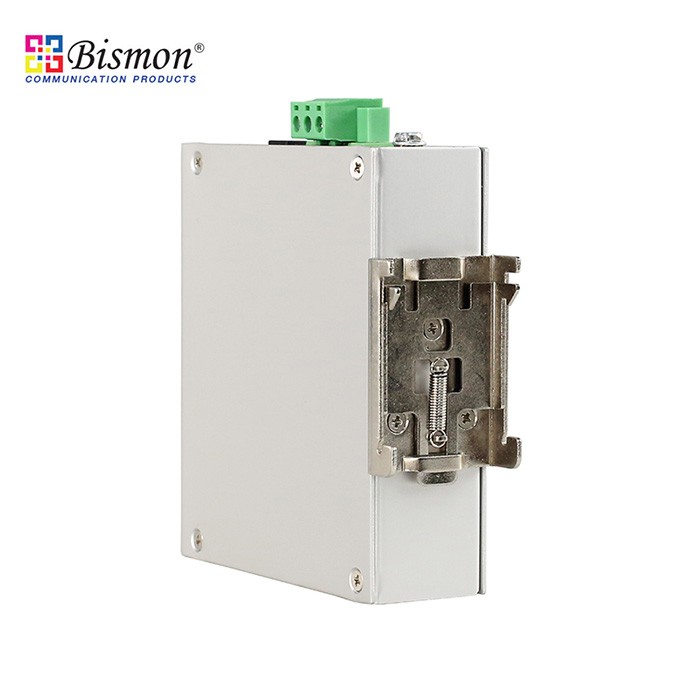

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
