OVERVIEW

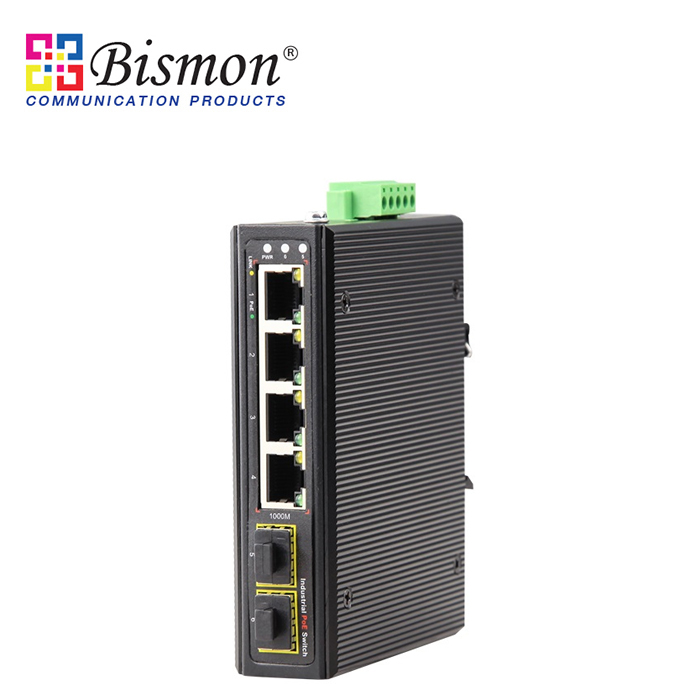

The B1-IPS33064PF series is a full gigabit industrial PoE fiber switch independently developed by BISMON. It has 4*10/100/1000Base-T RJ45 ports and 2*1000Base-X SFP fiber slot ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
Unmanaged industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*1000M SFP slot ports, Port 1-4 can support IEEE802.3af/at PoE standard. Support dual DC power supply input and DIN rail mounting.
FEATURE
Gigabit Ethernet port access uplink gigabit dual SFP port
• Uplink gigabit dual SFP fiber ports, easy to achieve high bandwidth and long-distance transmission.
• Dual SFP fiber ports can cascade, chain, compatible with SFP module connection.
Powerful port lightning protection, wide voltage input
• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input
• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V
Intelligent PoE power supply
• 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
• Low power consumption, No fan, aluminum casing.
• CCC, CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link, L/A,PoE.
Specification
Product Name 6-port Full Gigabit Industrial PoE Fiber Switch
Product Model B1-IPS33064PF
Fixed Port 4*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP slot ports(Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port Ports 1-4 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Fiber Port Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable Multimode: 850nm 0 ~ 550M, single-mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IIEEE802.3x
Performance Specification
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 16Gbps
Forwarding Rate 8.93Mpps
MAC 8K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power: PWR (green), network ;Link, (yellow), POE: PoE (green), Fiber port : 5/6 (green)
PoE & Power
PoE Port Port 1 to 4 IEEE802.3af/at @ POE
Power Supply Pin Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-)
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 60W/48VDC
Power Consumption Standby:<4W;Full load:<60W
Power Supply No, optional 48V/60W or 48V/120W industrial power supply
Working Voltage 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection.
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 119*100*30mm
Net /Gross Weight <0.5kg / <0.7 kg

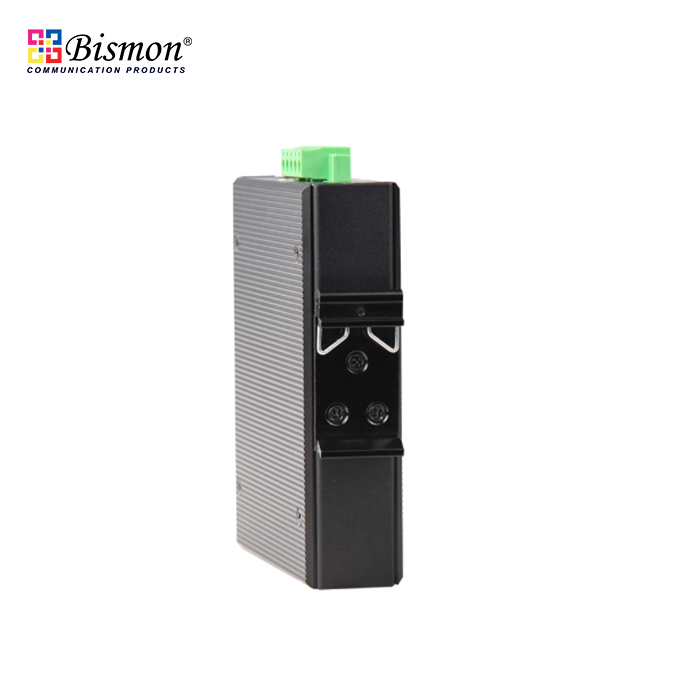

Installation Desktop, DIN rail
Certification & Warranty
Lightning protection / protection level
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
Warranty 3 years , lifelong maintenance.
