OVERVIEW

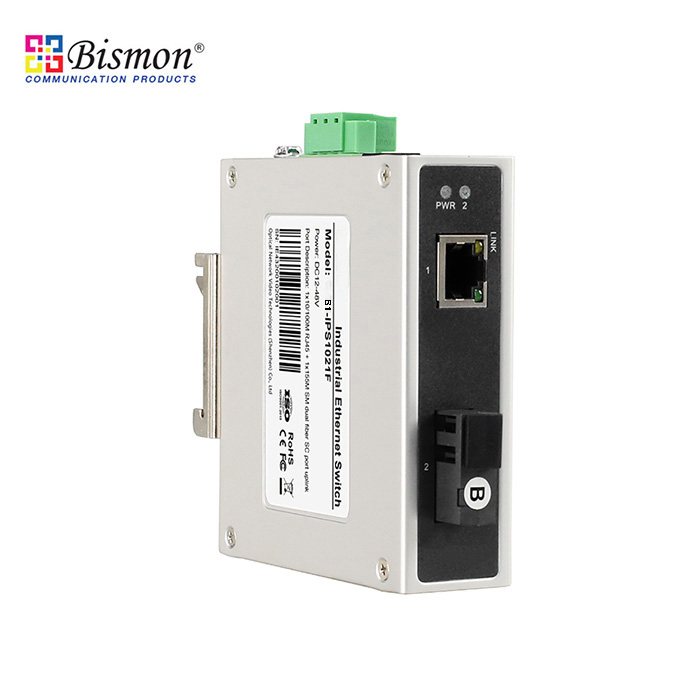

The B1-IPS1021PF-A is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 1*10/100M RJ45 port and 1*155M uplink SC-Single-fiber port 1310nm(A). Port 1 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP cameras, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
100M RJ45 and SC port, fast Ethernet
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 10/100M RJ45 port and 155M SC fiber port SingleFiber 1310nm(A)combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 1*10/100Base-TX RJ45 port can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
Stable and reliable
- CCC, CE, FCC, RoHS.

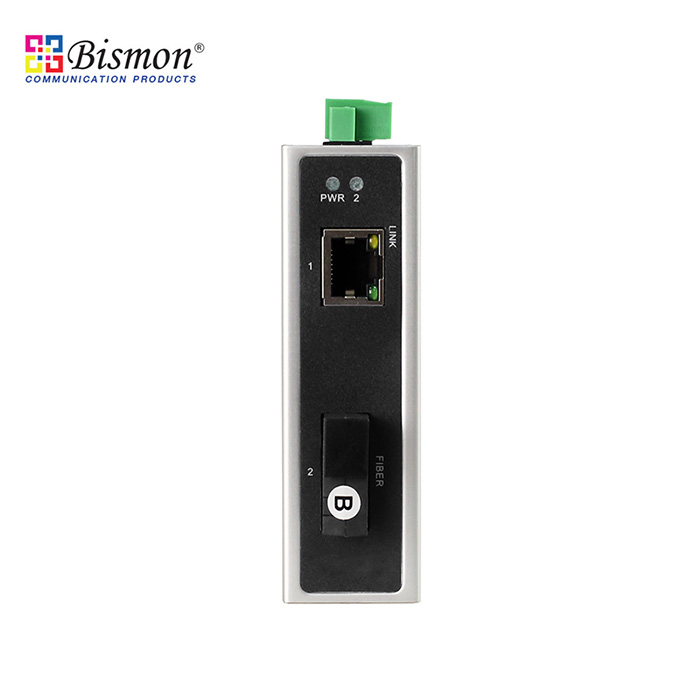

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS1021PF-A
|
|
Interface Characteristics
|
|
Fixed Port
|
1*DC5521 power socket
1*155M uplink SC Single-fiber port(Data) 1310nm(A)
1*10/100Base-TX PoE port (Data/Power)
2 sets V+, V- redundant DC power port (3P Phoenix terminal)
|
|
Ethernet Port
|
Port 1 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP ( ≤100 meters)
|
|
Optical Fiber Port
|
Optical module is single-mode Single fiber 20km, SC port(A)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
1.0Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
0.3Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
512K
|
|
Jumbo Frame
|
2048B
|
|
LED Indicator
|
Power: PWR (Green), PoE: PoE (Green), Network: Link (Yellow), Fiber port: 2 (Green)
|
|
PoE & Power Supply
|
|
PoE Port
|
Port 1
|
|
Power Supply Pin
|
1/2(+) 3/6 (-)
|
|
Max Power Per Port
|
30W, IEEE 802.3 af/at
|
|
Power Consumption
|
Standby<1W, Full load af<15, at<30W
|
|
Operating Voltage
|
DC44-56V, 3P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 36W/48V industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP/ Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage TEMP/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
98*88*30mm
|
|
Net /Gross Weight
|
0.25kg/ 0.35kg
|
|
Installation
|

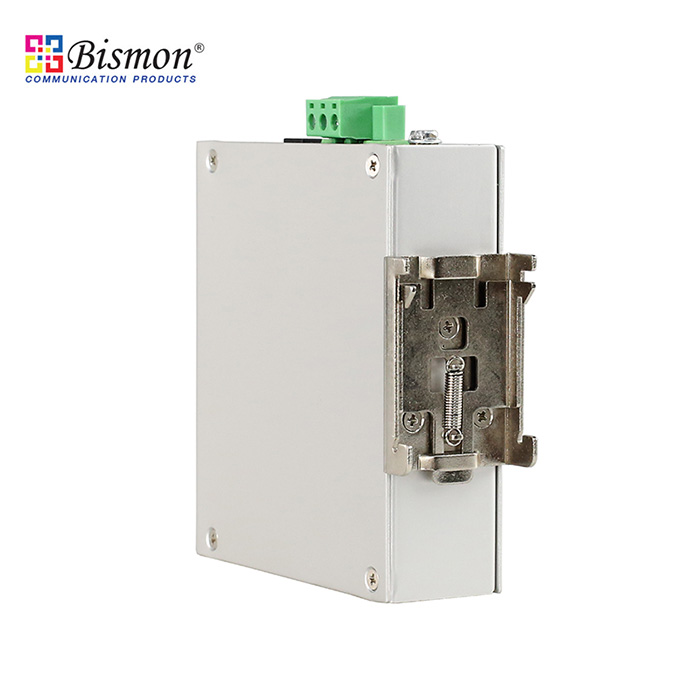

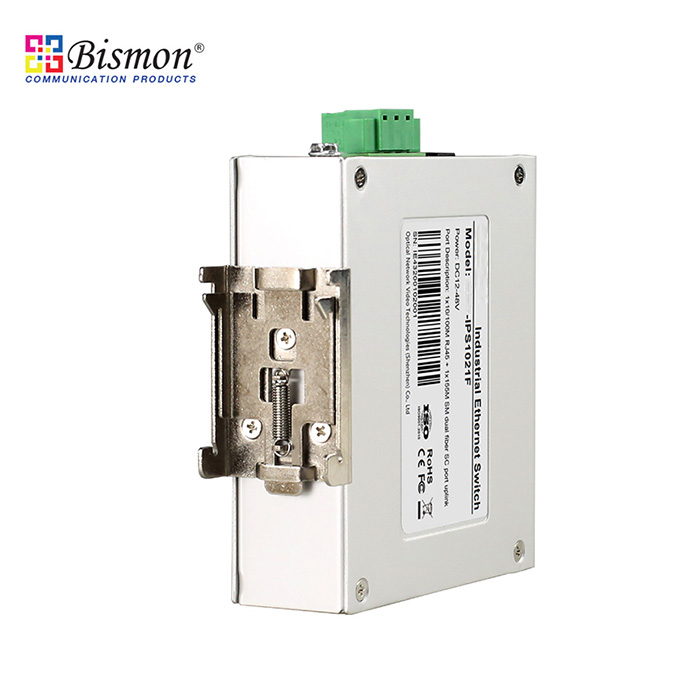

Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP30
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
