OVERVIEW
The B1-IPS33032PF series is a full gigabit industrial PoE fiber switch independently developed by BISMON. It has 2*10/100/1000Base-T RJ45 ports and 1*1000Base-X SFP fiber slot port. Port 1-2 can support IEEE 802.3af/at standard PoE power supply. the maximum PoE output power is less than 35W(at-60W). As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, Industrial scenes such as shipping, metallurgy, and green energy construction form a cost-effective, stable and reliable communication network.

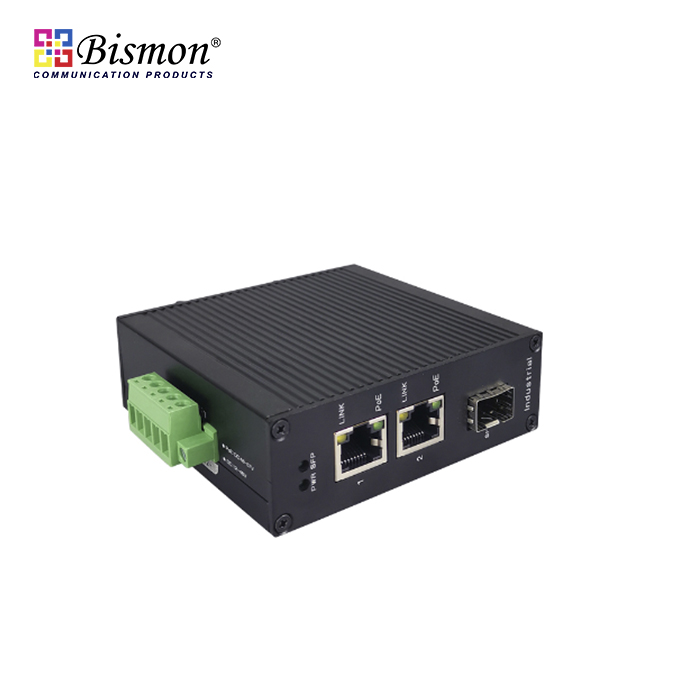

Unmanaged industrial PoE fiber switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink SFP slot port, Port 1-2 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting.
FEATURE
Gigabit Ethernet access, SFP fiber port uplink
• All series support “Gigabit Ethernet port and Gigabit SFP port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Port lightning protection, wide voltage input
• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input.
• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply
• 2*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
• Low power consumption, No fan, aluminum shell.
• CCC, CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, L/A, PoE.
Specification
Product Name 6-port Full Gigabit Industrial PoE Switch
Product Model B1-IPS33064P
Fixed Port 2*10/100/1000Base-T PoE ports (Data/Power)
1*100/1000Base-X uplink SFP fiber slot port(Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port Port 1-2 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Fiber Port Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable Multimode: 850nm 0 ~ 500M
Single-mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IIEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 8Gbps
Forwarding 4.46Mpps
MAC Address 8K
Buffer Memory 1M
Jumbo Frame 9.2K
LED Indicator Power: PWR (green), Network: Link ,Link/Act (yellow),PoE: PoE (green)
PoE & Power
PoE Port Port 1 to 2 IEEE802.3af/at @ POE
Power Supply Pin Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-)
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 36W/48VDC
Power Consumption Standby<3W, Full load<35W
Power Supply No, optional 48V/36W or 48V/60W industrial power supply
Working Voltage 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection.
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 119*100*30mm
Net /Gross Weight <0.3kg / <0.6kg

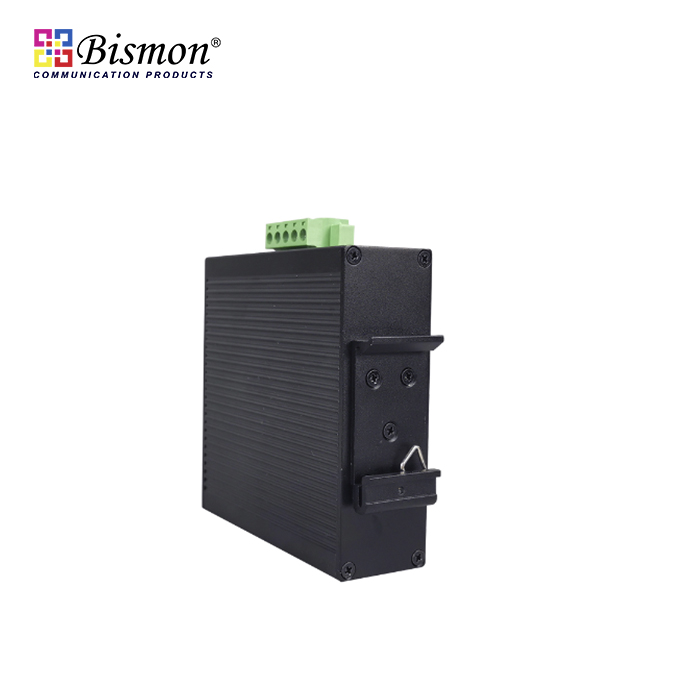

Installation Desktop, DIN rail
Certification & Warranty
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
Warranty 3 years, lifelong maintenance.
