4Port 10/100Base-TX RJ45+1*SC-Single-fiber 1310nm(A), SM 20km Industrial Ethernet Switch

Part number : B1-IPS1004F-A

Brand : BISMON

Price : 2,200.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

Minimum order quantity : 1 pcs

Warranty : 3 Year

OVERVIEW

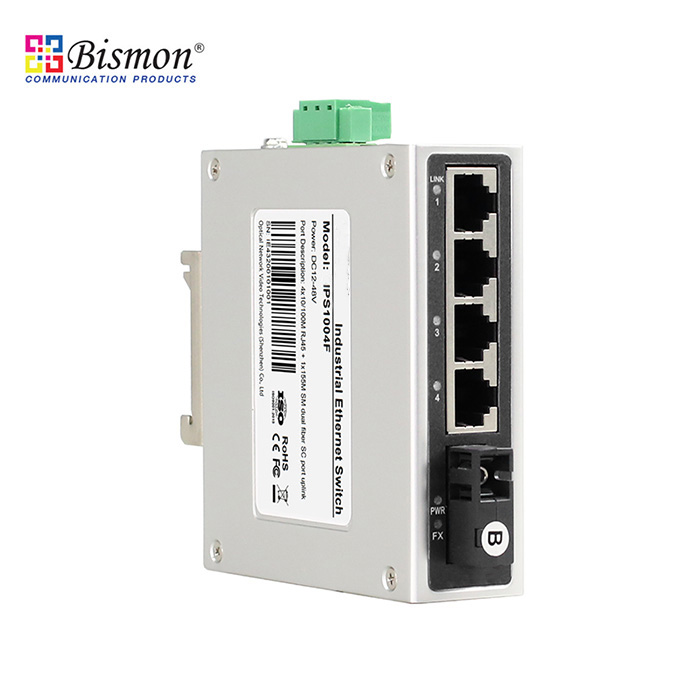

The B1-IPS1004F-A is a 10/100M Industrial Ethernet fiber switch independently developed by ONV. It has 4*10/100M RJ45 ports and 1*155M uplink SC-Single fiber port 1310nm (A), and each port can support full line-rate forwarding.

The B1-IPS1004F-A has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). The protection level is IP30 and 3-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M access, Fast Ethernet

- Support non-blocking wire speed forwarding

- Support full-duplex based on IEEE 802.3x and half duplex based on Backpressure

- Support 100M RJ45 port and 155M SC-Single fiber port SM 20km 1310nm (A) combination to meet networking needs in various scenarios.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR and Link.

- Low power consumption, no fan, Aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-IPS1004F-A
Interface Characteristics
Fixed Port	1DC5521 power socket 1155M uplink SC-Single fiber port(Data) SM 20km 1310nm (A) 4*10/100Base-TX RJ45 ports(Data) 2 sets V+, V- redundant DC power port (3P Phoenix terminal)
Ethernet Port	Port 1-4 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Default optical module is single-mode Single fiber 20km, SC port 1310nm (A)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.0Gbps (non-blocking)
Forwarding Rate @64byte	0.744Mpps
MAC	2K
Buffer Memory	512K
Jumbo Frame	2048bytes
LED Indicator	Power: PWR(Green), Network: Link 1-4 (Green), Fiber port: FX (Green)
Power Supply
Power Consumption	Standby<3W, Full load<5W
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Working Voltage	DC12-48V, 3P industrial phoenix terminal, anti-reverse protection.
Physical Parameter
Operation TEMP/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
