6-port 10/100Mbps with Fiber 2xSC Dual fiber Single-mode 20km industrial switch

Part number : B1-IPS31084F-S

Brand : BISMON

Price : 7,000.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Warranty : 3 Year

OVERVIEW

The B1-IPS31084F is a 10/100M Industrial Ethernet fiber switch independently developed by ONV. It has 6 *10/100M RJ45 ports and 2*155M SC fiber ports, and each port can support full line-rate forwarding.

The B1-IPS31084F industrial Ethernet switch has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), the protection level is IP40, it supports for dual power supply, low power consumption, no fan cooling technology, MTBF is 35 years, 5 years warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and green energy construction to form a cost-effective, stable and reliable communication network.

FEATURE

10/100M TP/SC port, fast Ethernet

- All series support "10/100M RJ45 port and 155M SC fiber port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Stable and reliable

- Low power consumption, no fan , aluminum casing.

- CCC,CE, FCC, RoHS.

- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link .

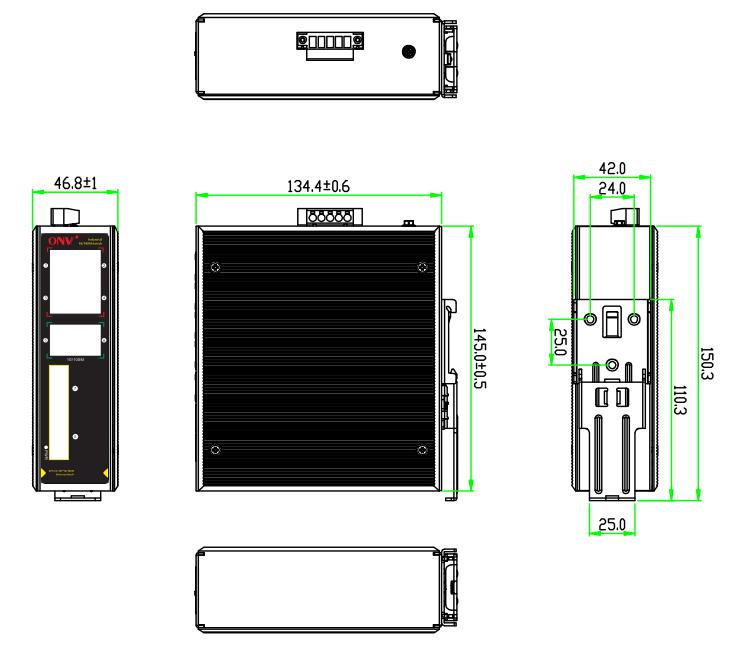

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-IPS31084F-S
Interface Characteristics
Fixed Port	610/100Base-TX RJ45 ports(Data) 2155M uplink SC slot ports(Data) Single-mode Dual fiber 2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port	Port 1-6 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter)
SC Slot Port	Default optical module is single-mode dual-fiber 20km, SC interface
Optical Cable/ Distance	Multi mode: 850nm ,0 ~ 550M, 1310nm,0~2km single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3u 100Base-FX IIEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.6Gbps
Forwarding Rate@64byte	1.19Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1632byte
LED Indicator	Power: PWR (green), network: Link(yellow),Fiber port :L/A (green)
Power
Power Consumption	Standby<4W, Full load<8W
Power Supply	No, optional 24V24W industrial power supply
Working Voltage	12-48VDC; 5P industrial Phoenix terminal, support anti-reverse protection.
Physical Parameter
Operation TEMP / Humidity	-40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C;5%~95% RH Non condensing
Dimension (LWH)	145134.547.5mm
Net /Gross Weight	<0.5kg / <0.7kg
Installation	Desktop, DIN rail
Certification & Warranty
Lightning protection / protection level	Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard)
