OVERVIEW

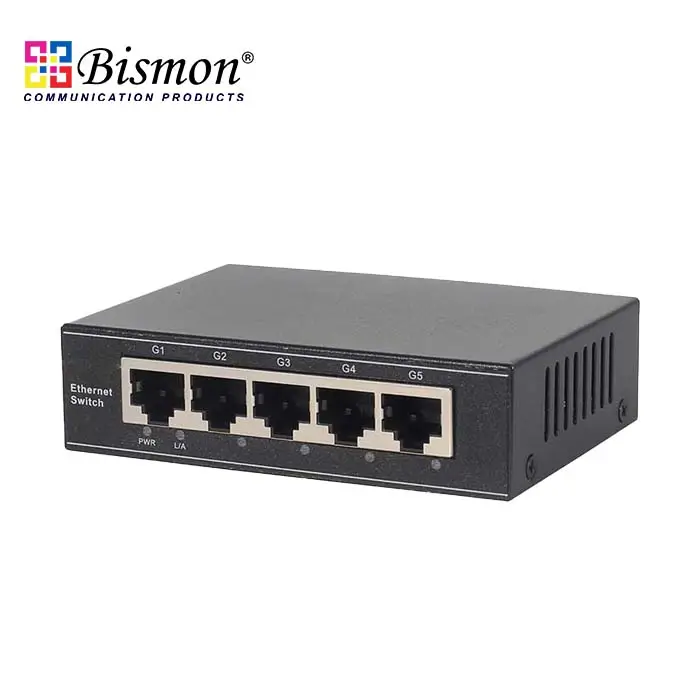

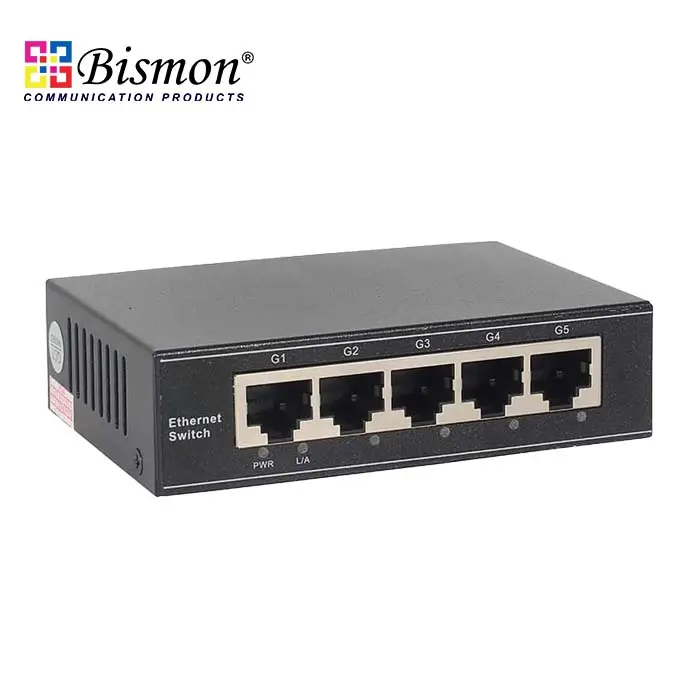

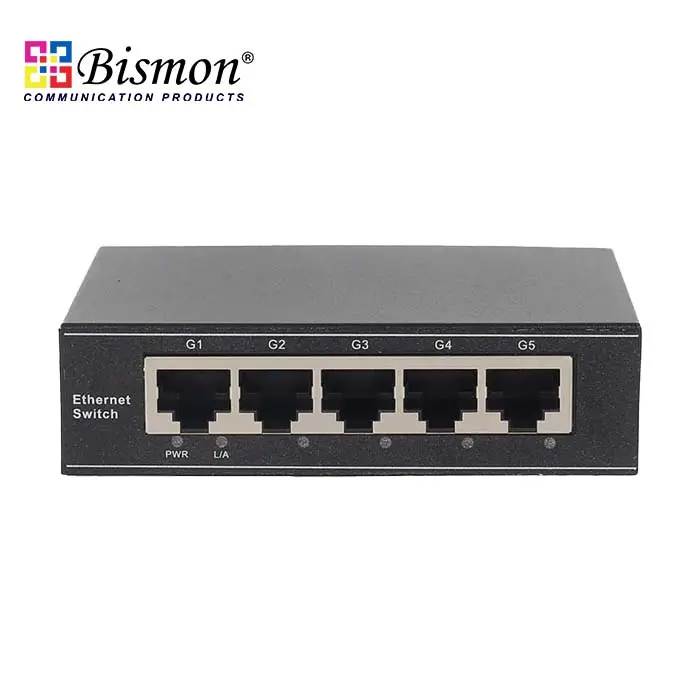

B1-H3005 is designed as CCTV surveillance Network Switch for a simple network environment including home, school dormitory, office, and small scale surveillance system, etc. Large capacity cache chip design and full port support wire speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 5*10/100/1000M auto sensing RJ45 port. Full-duplex rate up to 200M. Auto identify parallel lines and cross lines. Plug and play, expand the high speed network in a fast way.
Housing made of 0.8 mm galvanized industrial grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR, and IP Camera, etc.
FEATURE
• 5* 10/100/1000Mbps auto sensing RJ45 ports, auto MDI/MDIX.
• Gigabit non blocking wire speed forwarding, keeps the network fluent.
• Full duplex and half duplex, preventing frame loss from port blocking.
• Auto detecting of parallel/cross line. Simplify the network structure and maintenance.
• Store and forwarding mode.
• Support MAC self learning and updating
• Support connection with IP Cameras and wireless AP.
• Plug and play, no need for more configuration.
• Support desktop/wall mounted installation.
• Low power consumption design. Energy- saving and green. Max total power consumption < 4W.
TARGET INDUSTRIES
• HD monitor transmission and power supply
• Wireless AP layout transmission and power supply
• Ethernet telephone transmission, intelligent house, and home system
• Intelligent transportation supervisory system(ITS)
• High speed Way supervisory/Tele Communication System
• Security protection system, TV medical treatment
• Long distance Multi media Schooling, Campus monitoring
• The long distance broadcast television transmission system
• High building Security Protection, Military Tele Com projects
Model
|
B1-H3005
|
Interface
|
5* 10/100/1000Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)
|
Network Media
|
UTP 10Base-T: Cat.3/4/5 (≤100m)
UTP 100BASE-TX: Cat.5/Above (≤100m)
UTP 1000BASE-TX: Cat.5e/Above (≤100m)
|
Forwarding Mode
|
Store-and-Forward
|
Forwarding Rate
|
7.44Mpps
|
Switching capacity
|
10Gbps
|
Buffer Memory
|
2M
|
MAC Address Table
|
2K
|
Standard Protocol
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z
|
Access Control
|
CDMA/CD
|
LED Indicator
|
1*power LED?5* Link/Act LED
|
Power Consumption
|
Standby State: 0.7W. Max power consumption ? 4W
|
Power Input
|
AC:100?240V; 50~60Hz; 0.5A
|
Power Output
|

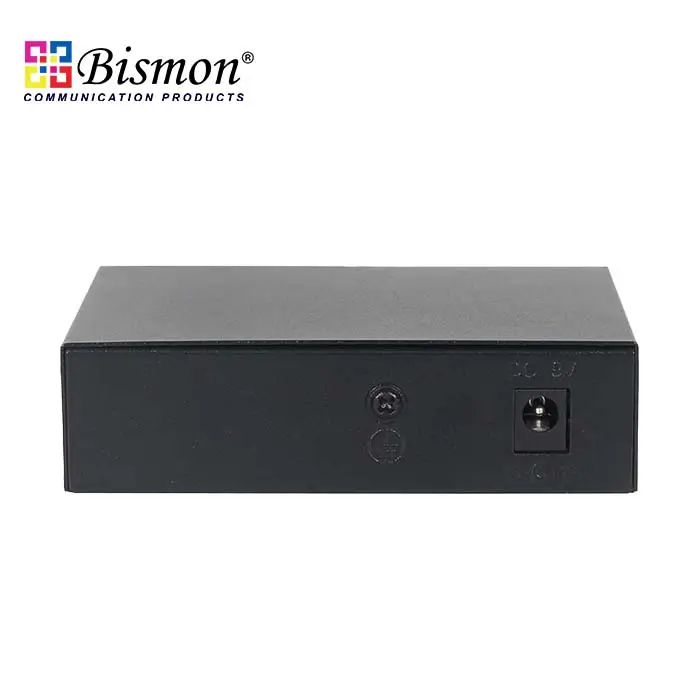

9.0V 1.0A (External power adaptor)
|
Dimension
|
98mm*70.7mm*27mm?L*W*H?
|
Working Environment
|
Working Temperature:-20?~55?
Storage Temperature: -40?~70?
Working Humidity: 10%~90% Non-condensing
Storage Humidity 5%~90% RH?non-condensing?
|
Certification
|
CE, FCC, RoHS
|
Warranty
|
1 Year
|
