OVERVIEW

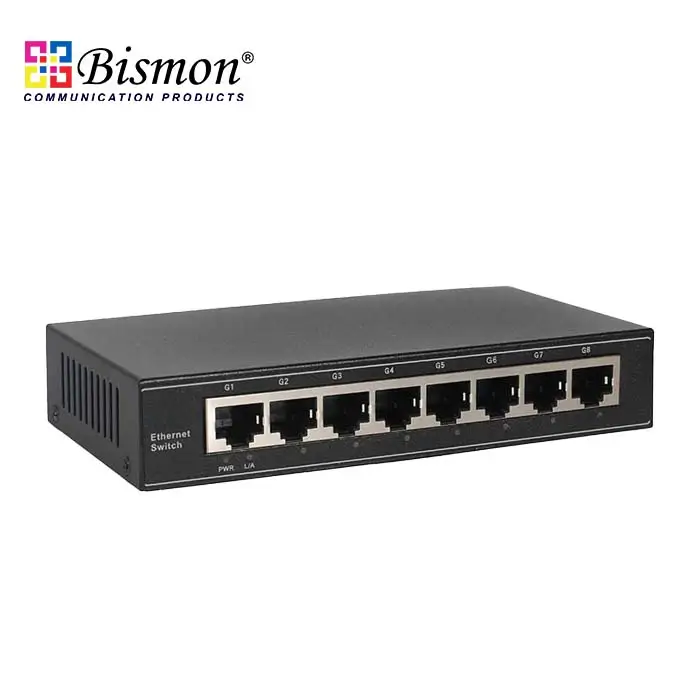

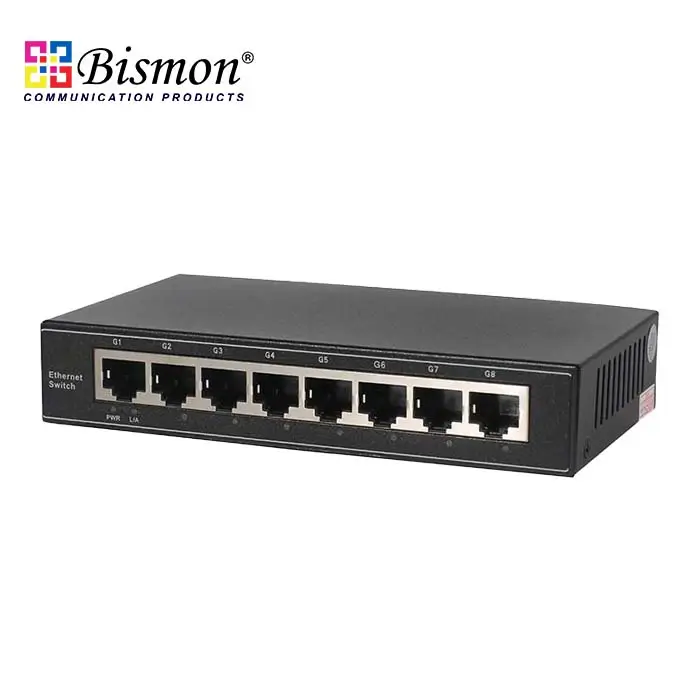

B1-H3008 is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 8*10/100/1000M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Mini size and fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR and IP Camera etc.
FEATURE
• 8* 10/100/1000Mbps auto-sensing RJ45 ports, auto MDI/MDIX.
• Gigabit non-blocking wire-speed forwarding, keeps network fluent.
• Full duplex and half duplex, preventing frame loss from port blocking.
• Auto-detecting of parallel / cross line. Simplify the network structure and maintenance.
• Store and forwarding mode.
• Support MAC self-learning and updating
• Support connection with IP Cameras and wireless AP.
• Plug and play, no need more configuration.
• Support desktop/wall mounted installation.
• Low power consumption design. Low power consumption design. Energy-saving and green. Max total power consumption < 6W.
TARGET INDUSTRIES
• HD monitor transmission and power supply
• Wireless AP layout transmission and power supply
• Ethernet telephone transmission , intelligent house and home system
• Intelligent transportation supervisory system(ITS)
• High-speed Way supervisory/Tele-Communication System
• Security protection system, TV medical treatment
• Long-distance Multi-media Schooling, Campus monitoring
• Long-distance broadcast television transmission system
• High-building Security Protection, Military Tele-Com projects
TECHNICAL SPECIFICATION
Model
B1-H3008
Interface
8* 10/100/1000Mbps auto-sensing RJ45 ports (Auto MDI/MDIX)
Network Media
UTP 10Base-T: Cat.3/4/5 (≤100m)
UTP 100BASE-TX: Cat.5/Above (≤100m)
UTP 1000BASE-TX: Cat.5e/Above (≤100m)
Forwarding Mode
Store-and-Forward
Forwarding Rate
11.9Mpps
Back-bound Bandwidth
16Gbps
Buffer Memory
4M
MAC Address Table
8K
Standard Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z
Access Control
CDMA/CD
LED Indicator
1*power LED?8* Link/Act LEDs
Power Consumption
Standby State: 0.7W. Max power consumption < 6W
Power Input
AC:100-240V;50~60Hz 0.5A
Power Output

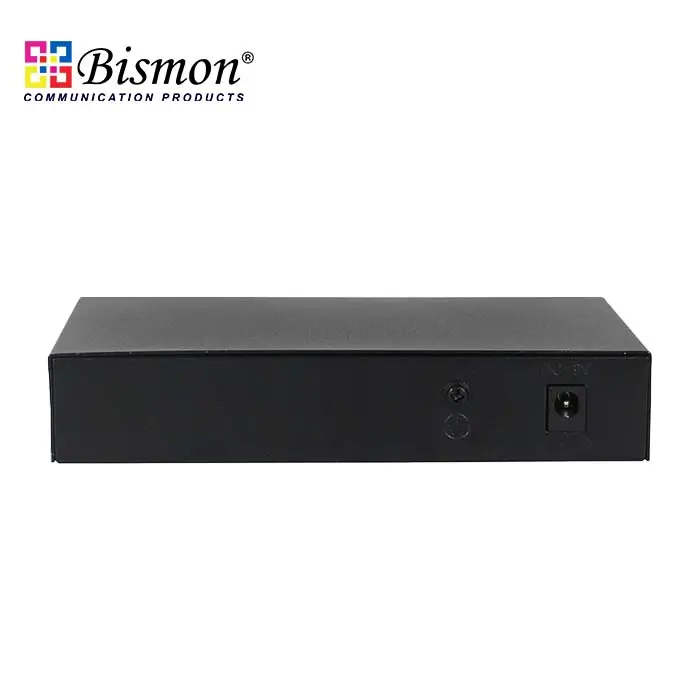

9V/1A (External power adaptor)
Dimension
142mm*78.8mm*27mm (L*W*H)
Working Environment
Working Temperature: -20c~55c
Storage Temperature: -40c~70c
Working Humidity: 10%~90% Non-condensing
Storage Humidity 5%~90% RH (non-condensing)
Certification
CE, FCC, RoHS
