Specifications

• Fully shielded with zinc alloy housing.
• With T-568A and T-568B wiring map.
• Wire gauge: 22 AWG to 24 AWG.
• The outer diameter of the cable: is 7.0 mm to 8.5 mm.
• Suitable for the PoE Plus (IEEE 802.3at) applications.
• With a 5-Angle Screw-Fit boot.
• Extreme performance designed for edge data centers.

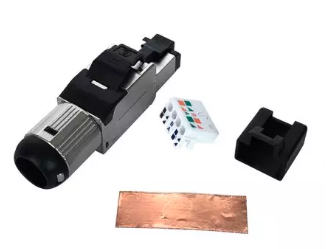

Material

1. Extractor: PC, UL 94V-2, black color.
2. Housing: zinc die-casting with nickel-plated.
3. RJ45 plug:
3-1. Housing: PC, UL 94V-2, black color.
3-2. Contact material: phosphor bronze with 100 micro-inch nickel plated.
3-3. Contact finish: min. 50 micro-inch gold plated on the surface contact area.
4. Cover: zinc die-casting with nickel-plated.
5. Wire management bar: PC, UL 94V-2, white color.
6. IDC:
6-1. Housing: PC, white color, UL 94V-2.
6-2. Terminal: titanium copper with tin-plated.
7. Grounding contact: copper with nickel-plated.
8. Boot:
8-1. Housing: Zinc die-casting with nickel-plated.
9. PCB, UL 94V-0.
10. Copper foil tape.
11. Dust cap: PE, black color.
