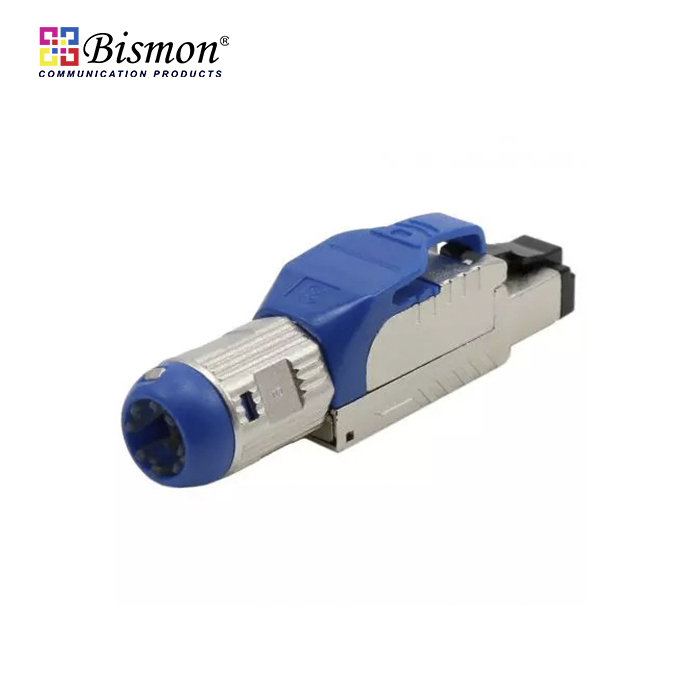

Cat.8 Toolless Termination plug shielded (Blue color)

Part number : B1-PRA8TL-BL

Brand : BISMON

Price : 868.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

Minimum order quantity : 1 pcs

Warranty : 1 Year

Cat.8 STP Field Termination Plug

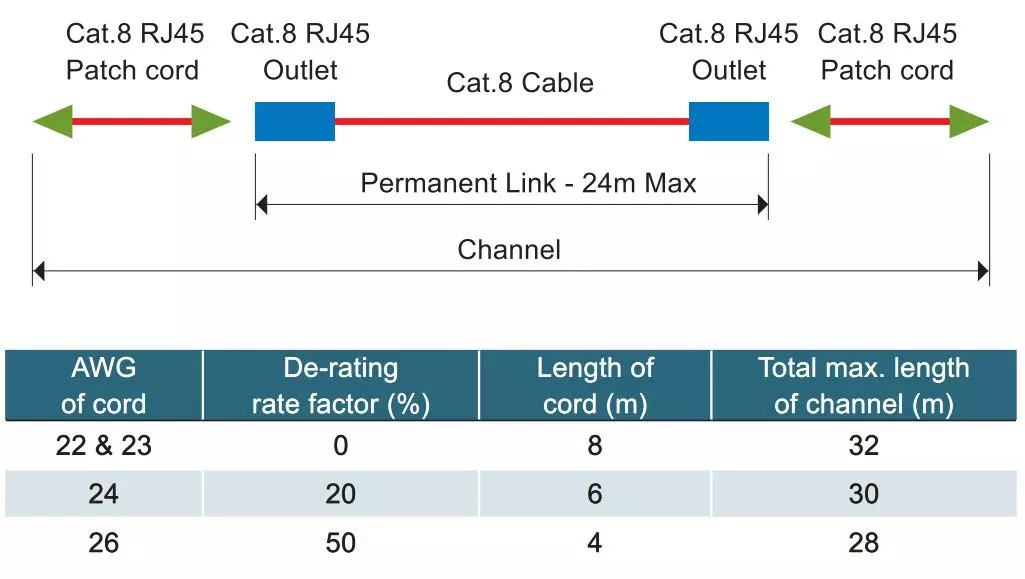

Applied under a 30-meter channel test for data center links, Category 8 is the next-generation cabling standard. It allows you to transport data up to 2.5 times faster for switch-to-server connections in data centers. The connector supports 25GBASE-T applications for short distances (up to 30 meters). The ultra-high-speed ethernet connector meets the PoE Plus (IEEE802.3at) requirements and provides excellent network cabling performance. It was launched recently and received an enthusiastic reaction in the market. We have the complete Category 8 solution for the highest speed data transportation.

RJ45 Plug Cat8 Full Shielded Twisted Pair Toolless Ethernet Connector

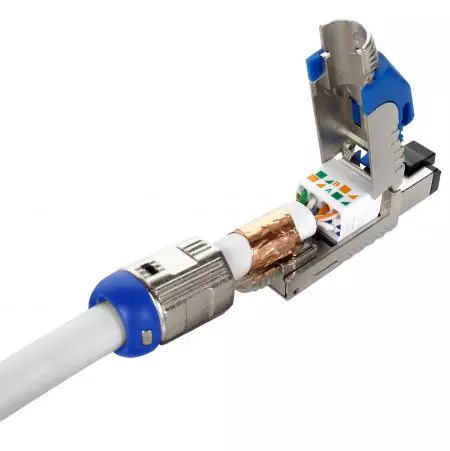

The long Snagless clip for easy and fast installation in a high-density cabinet gives it a decent touch when plugged in and out. The screw-fit plug boot is compatible with 22 AWG to 24 AWG cables with an outer diameters of 7.0 mm to 8.5 mm. The dust cover provides protection under IP20 level and is included as a component of the Cat8 Full Shielded Termination Plug.

Specifications

Full shield with zinc alloy housing.
With T-568A and T-568B wiring pinout map.
Category 8 channel performance verified.
Wire gauge: 22 AWG to 24 AWG.
Outer diameter of cable: 7.0 mm 8.5 mm.
For PoE Plus (IEEE 802.3at) applications
Easy, fast, and reliable installation.

Mechanical Characteristics

Insertion force: 30 N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between plug and jack.
Operating temperature: -10? to 60? (ISO/IEC 11801-1: 2017 (Ed.1.0), ANSI/TIA/EIA 568.D)
Insertion lifespan:
Jack: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-5).
IDC: 20 cycles min.
IDC suitable for 22 AWG to 24 AWG stranded and solid wires
Suitable for OD of cable jacket from 7.0 mm to 8.5 mm.

Material

1. Extractor: PC, UL 94V-2.
2. Housing: zinc die-casting with nickel plated.
3. RJ45 Plug:
3-1. Housing: PC, UL 94V-2, black.
3-2. Contact material: phosphor bronze with 100 micro-inch nickel plated.
3-3. Contact finish: Min. 50 micro-inch gold plated on surface contact area.
4. Cover: Zinc die-casting with nickel plated.
5. Wire management bar: PC and glass fiber, white, UL 94V-2.
6. IDC:
6-1. Housing: PC, white, UL 94V-2.
6-2. Terminal: titanium copper with tin plated.
7. Grounding Contact: zinc die-casting with nickel plated.
8. Boot:
8-1. Housing: zinc die-casting with nickel plated.
8-2. SR: PC, UL 94V-2, transparent color.
8-3. Cap: PC, UL 94V-2, blue (RAL5005) color.
9. PCB, UL 94V-0.
10. Copper foil tape.

Download Datasheet

Related Product in - Cat7-8 Modular Plug

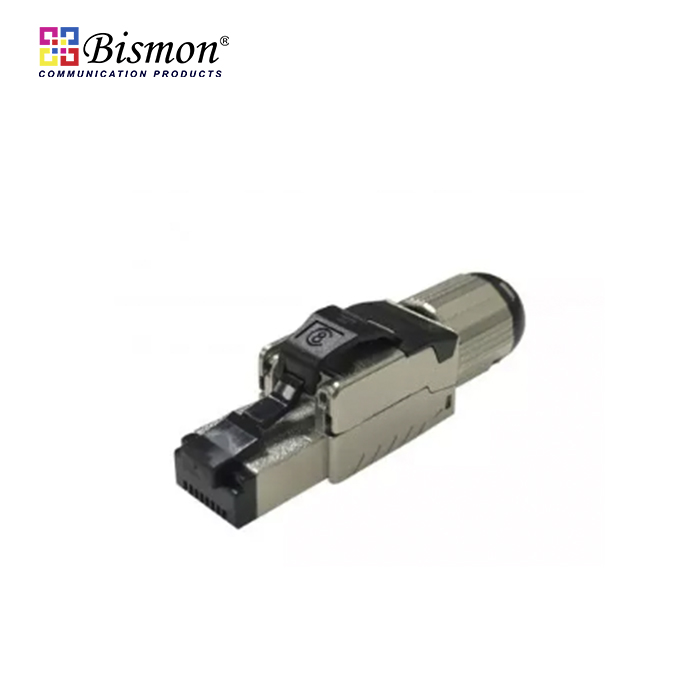

Cat.8 Toolless Termination plug shielded (Black color) Price : 868.00 Baht

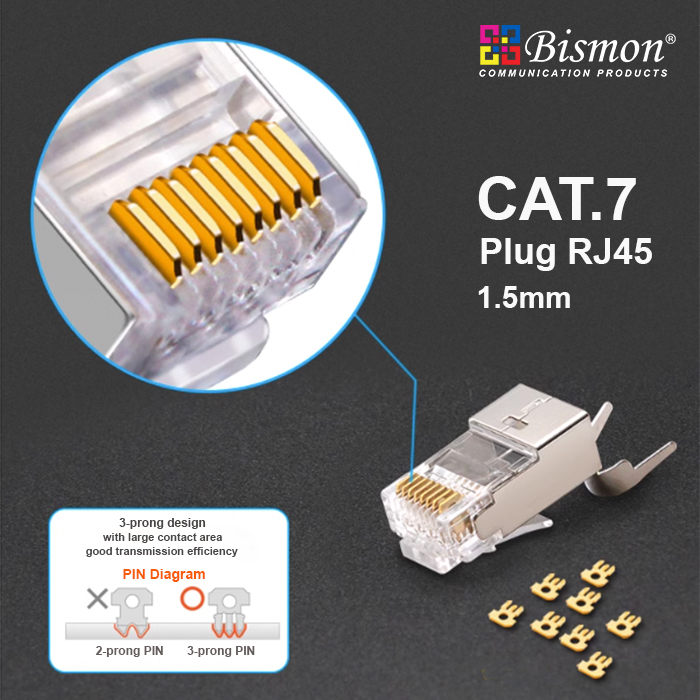

Cat7 Plug RJ45 Male FTP Shield high speed 10-100GB Price : 24.00 Baht
