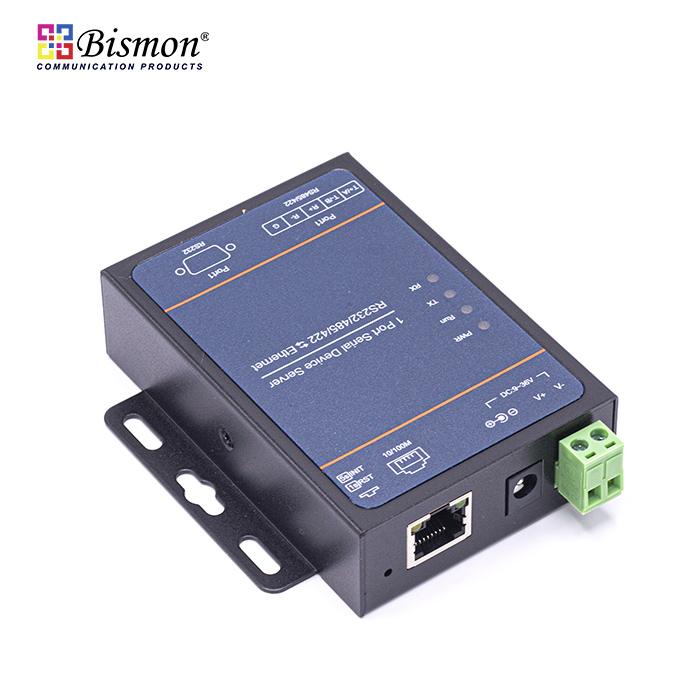

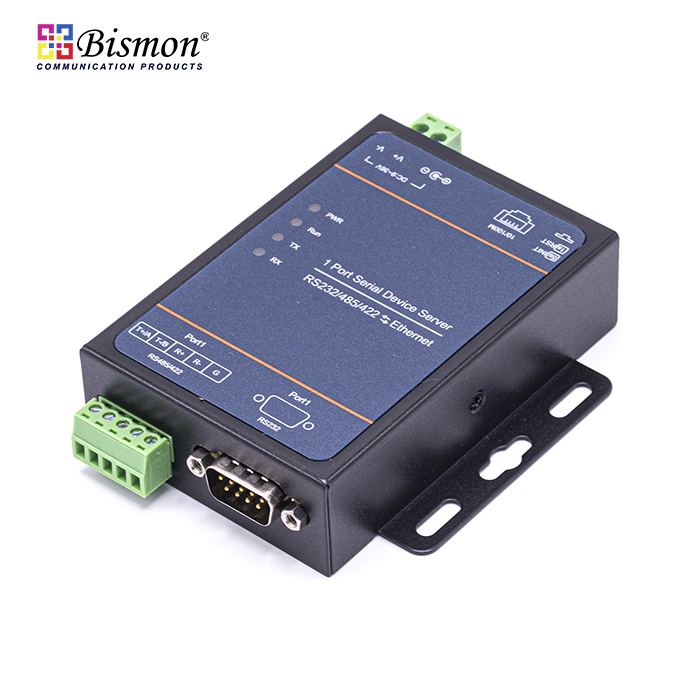

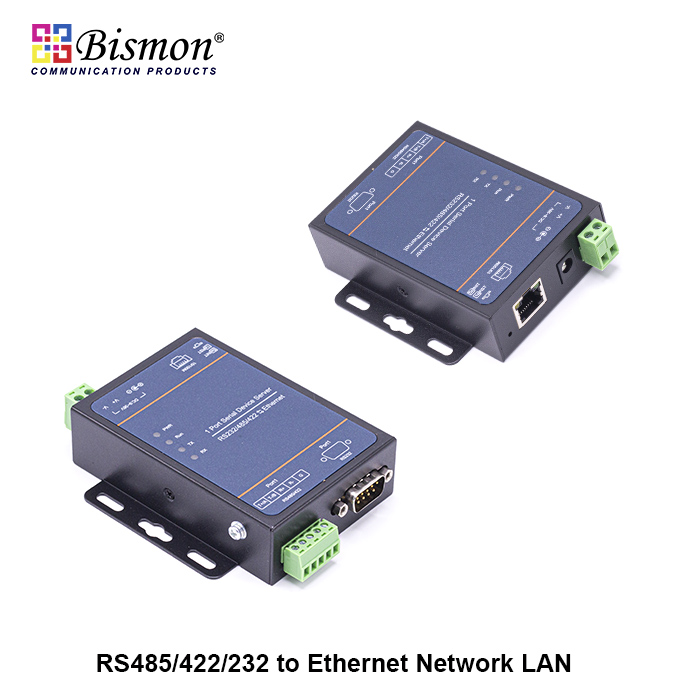

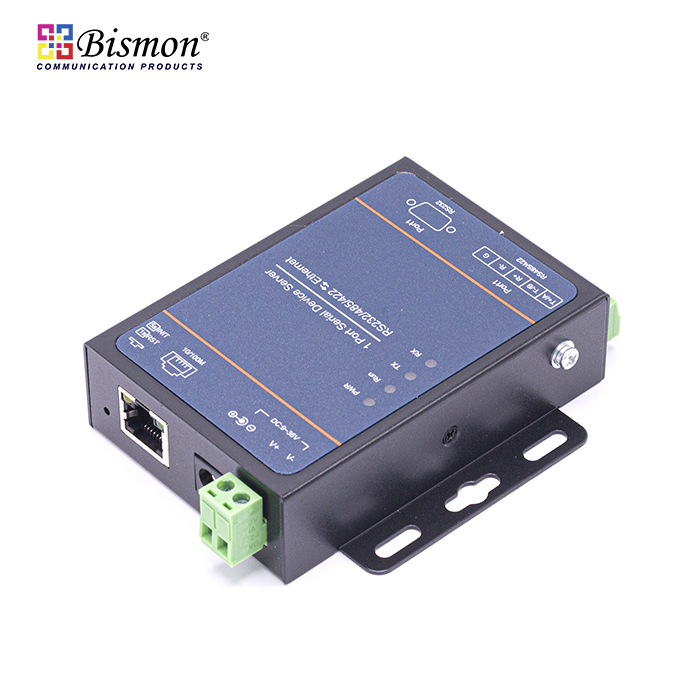

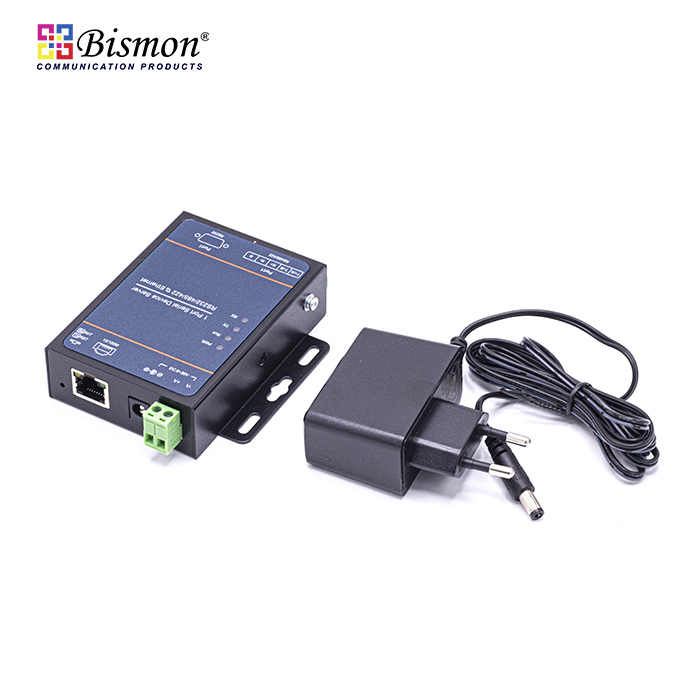

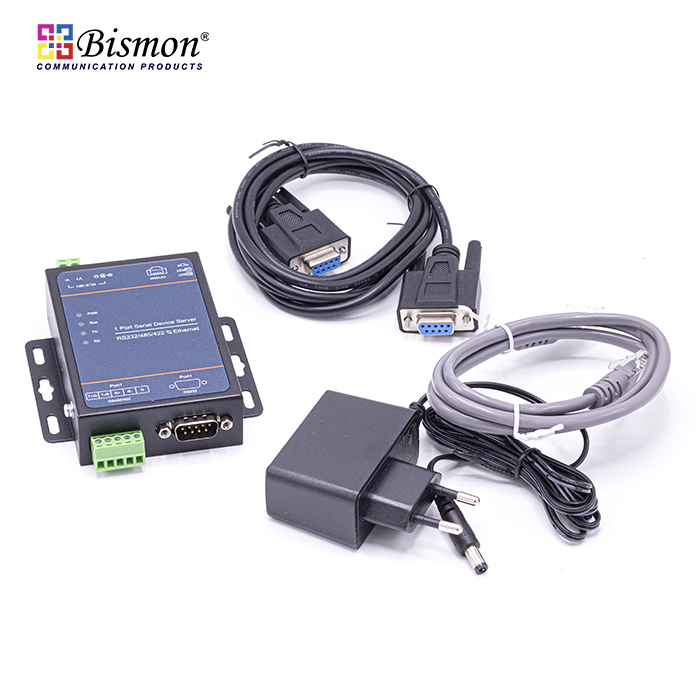

Product Description
Mport3101 series products mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485/RS422). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-232/RS-485/RS422 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.
Features and Benefits
-RS-232/RS-485/RS-422 serial interface up to 2kV surge protection
-Up to 6kV lightning protection on the Ethernet interface
-Support Modbus RTU/ASCII to Modbus TCP conversion
-Support VirtualCOM software management
|
Power supply
|
|
Working Voltage
|
9~36V
|
|
Working current
|
37mA@12V
|
|
Network port
|
|
Network port type
|
10 / 100Mbps, RJ45 interface; adaptive MDI / MDIX cross-connect and auto-flip
|
|
Isolation protection
|
1.5KV isolation protection
|
|
Serial port
|
|
Number of serial ports
|
1 * RS232/RS485/RS422 working mode, choose one of three
|
|
Baud rate
|
600~460800 (bps)
|
|
Data bit
|
7, 8
|
|
Stop bit
|
1, 2
|
|
Validation modes
|
none, odd parity, even parity
|
|
Connector
|
DB9 for RS232, ternimal blocks for RS485/422
|
|
Reliability
|
|
ESD
|
±6kV(contact); ±8kV(air)
|
|
Surge
|
Power supply: ±2kV / common mode, ±2kV/ differential mode
|
|
RS485/ 422: ±2kV / common mode, ±2kV/ differential mode
|
|
Network port: ±6kV/ common mode, ±2kV/ differential mode
|
|
EFT
|
Power supply: ±2kV Communication port: ±2kV
|
|
Mechanical structure
|
|
Size
|
96mm*26mm* 90mm (length* height*width)
|
|
Working environment
|
|
Operating temperature
|
-40°C~85°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Relative humidity
|
5%~95% (no condensation)
|
|
Software parameters
|
|
Network Protocols
|
ICMP, IPv4, IP, ARP, TCP, UDP, DHCP, DNS, HTTP, RFC2217
|
|
IP acquisition method
|
Static IP/DHCP
|
|
DNS
|
Support
|
|
User configuration
|
Web configuration
|
|
Simple transparent transmission
|
TCP_Server/TCP_Client/UDP_Client/UDP_Multicast/RealCOM/Pair_Connection
|
|
Modbus
|
Support Modbus RTU / ASCII to Modbus TCP (Master and Slave Mode)
Support Modbus Over TCP
Modbus TCP to Modbus RTU
|
|
Serial port packaging mechanism
|
Time and length can be set;
The default value varies according to the bit rate;
The maximum packing length is 1460 bytes.
|
|
TCP Server connection
|
Support up to 8 TCP connections
|
|
Network cache
|
Send: 16Kbyte; Receive: 16Kbyte
|
|
Serial port cache
|
Send: 1.5Kbyte; Receive: 1.5Kbyte;
|
|
Flow Control
|
Auto Flow Control
|
|
Heartbeat bag
|
Support network port custom heartbeat package
|
|
Average transmission delay
|
<10ms
|
|
Supporting software
|
Network Configuration Tool, VirtualCOM, MWView, MaxView
|
|
|
|
