Twisted Pair Surge Protection Device
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the
shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc

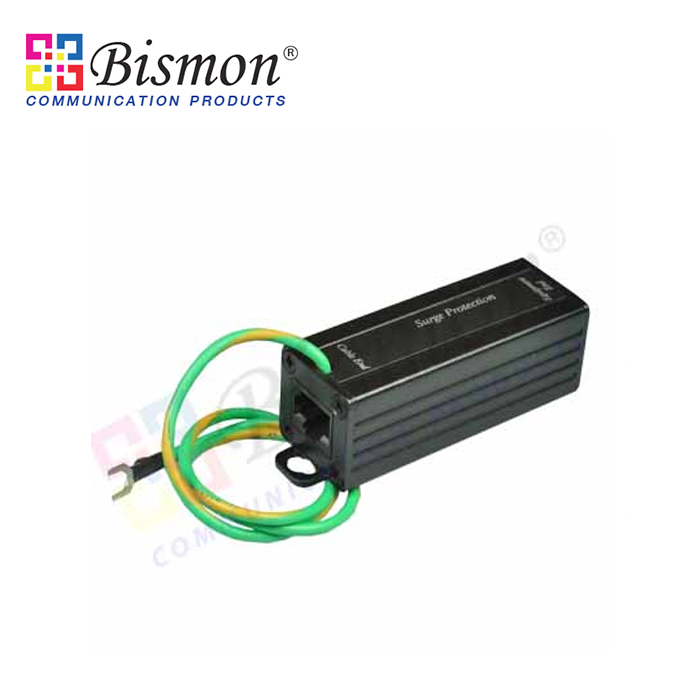

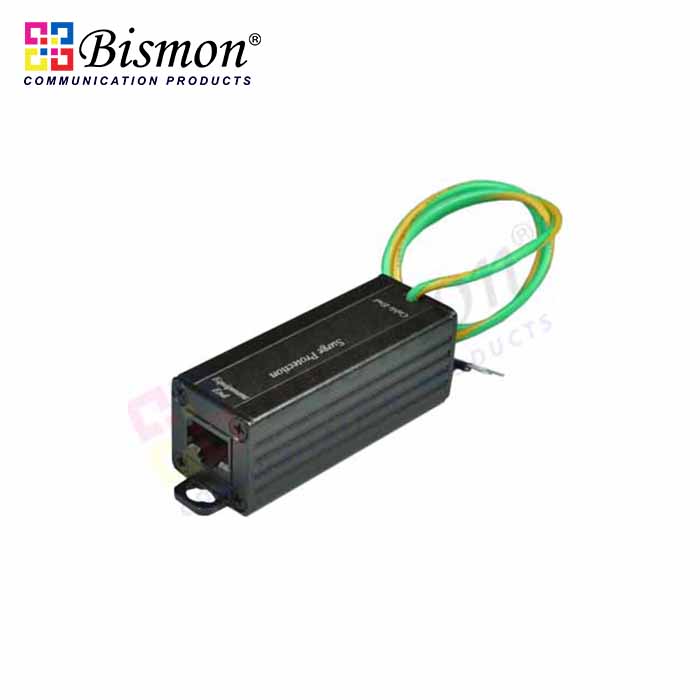

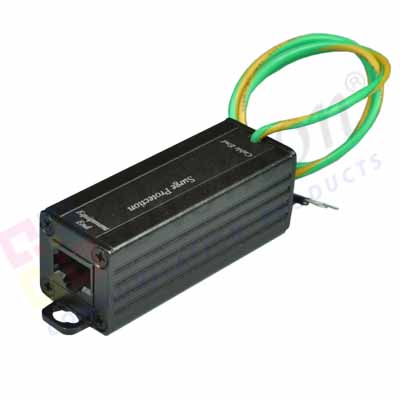

SP003 UTP Video Surge protection Device RJ45 Connector
• RJ45 Jack to RJ45 Jack
• Two pairs protection (pair 2 & pair 4)
• Protects UTP twisted pair transmission products
• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: 130V, AC/DC 12V
• Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.
Application
• CATV System
• Antenna of Television
• Video Cassette Recorders
• FM receivers
• Video Cameras and monitors
• Multiplexers and Quad Processor
Specification:
• Surge Protection Attack Time: 1 ns
• Maximum Surge Voltage: 4 KV
• Surge Life: 300 surges of 100 Amps
• Normal Resistance Across Coax: 10,000 M?
• Surge Resistance: Approx. 0?
• BAND PASS: 0~1 GHZ
• Power Passing Capability: 130V DC / AC, 65 Vrms at 10 Amps
• Insertion Loss: Less than 0.2 dB
• Return Loss (75 ohms): 16dB
• Connector: RJ45
• Dimension (mm): 85x25x25
• Weight (g): 90
