16 Channel HD-TVI/AHD/HDCVI Surge Protection for DVR in 1U Rack Mounting Panel
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

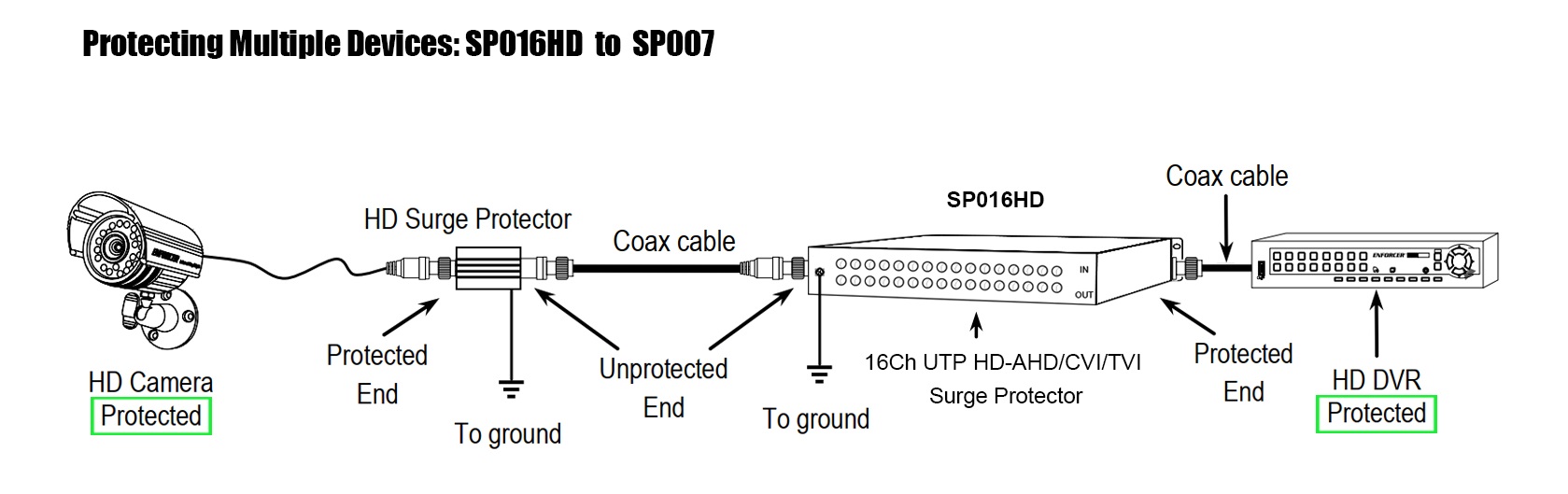

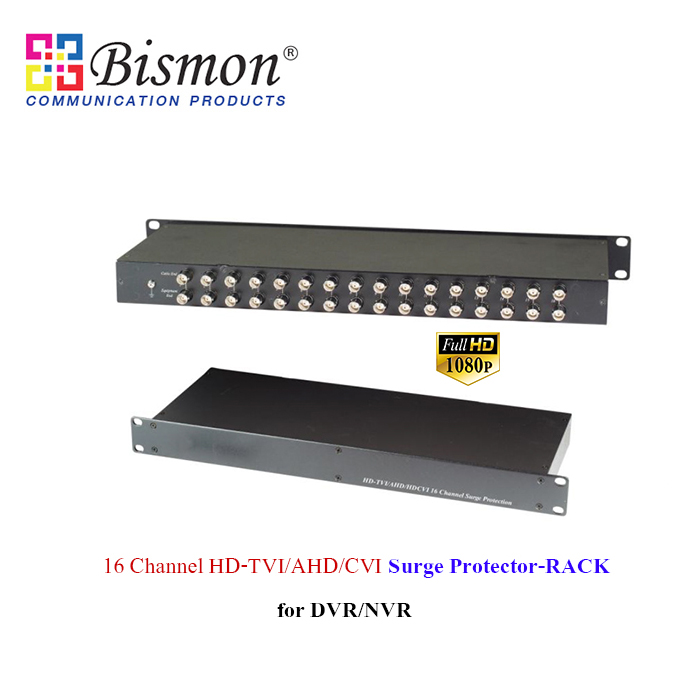

SP016HD: 16 Channel HD-TVI/AHD/HDCVI Surge Protection for DVR in 1U Rack Mounting Panel
• 16 x BNC male to 16 x BNC female.
• Provide protection for analog HD-CVI, HD-TVI, AHD camera, DVR devices.
• Comply with IEC 61000-4-5.
• Built in EFT (impulse noise), lightning protection.
• Provide protection for HD DVR or any equipment with multiple video inputs.
• Provide protection for DVR, multiplexers or any equipment with multiple video inputs.
Application:
• CATV System
• Antenna of Television
• Video Cassette Recorders
• FM receivers
• HD-CVI/TVI/AHD Cameras and DVR/Monitors
• FM receivers
• Video Cameras and monitors
• Multiplexers and Quad Processor
Recommend Cable
Link cable recommend to use high quality 75Ω Coaxial Cable & BNC connector, to use low quality coaxial cable may case signal loss and effect transmission distance and reliability.
Specification: SP016HD
• Input and output interface: BNC (Male) x 16 BNC (Female) x 16
• Surge Protection Attack Time: < 1nS
• Starting voltage surge: 6V
• Maximum Clamping Voltage: 25 V
• Reference Standard: IEC 61000-4-5
• Signal insertion loss: 0.8db @ 42 MHz
• Maximum discharge current: 15 KA (MAX)
• Environmental Specifications: operation: -40 to 85C, Storage: -20 to 85C, Humidity: up to 95%
• Dimensions: 483 x 185.5 x 44 (1U)
• Weight: 2200
