OVERVIEW
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for HDMI cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning-caused, high-frequency surges and provide no protection from these surges getting into a home and destroying your HDMI BD, HDMI monitor, etc HDMI equipment.

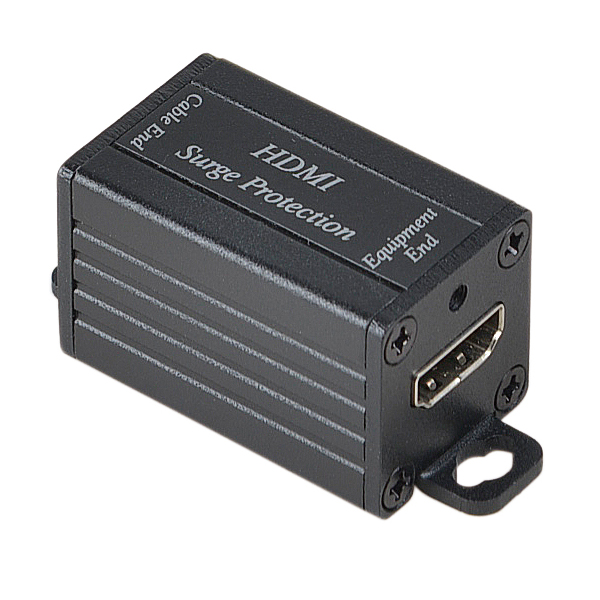

![](http://www.bismon.com/pic_product/pic_gall/SP008 HDMI Surge Protector.jpg)
![](http://www.bismon.com/pic_article/pic_gall/SP008 HDMI Surge Protector bismon.jpg)
HDMI Cable Distance and Caution:
1. For ensuring the unit can protect equipment, the earth cable must be connected to ground.
2. Resolution up to 4K, the HDMI cable must less 3.5M.
3. Buil-in ESD, EFT (Impulse Noise) protection
4. Response time less than 1 ns.
5. Based on 1080P resolution, the HDMI cable must less 5M.
![](http://www.bismon.com/pic_product/pic_gall/installation surge SP008.jpg)
Specifications:
• Provide protection for HDMI equipment.
• Support HDMI 1.4
• Compliant IEC61000-4-2, IEC61000-4-4, IEC61000-4-5
• Built in ESD, EFT (impulse noise), Lightning protection.
• Input/output Interface: HDMI x 2
• ESD Protection:15 KV(ESD), 8 KV (Contact)
• EFT Protection: 40A ( 5/50ns )
• Lightning Protection: 5A ( 8/20 us )
• Reaction Speed: < 1 nS
• Temperature: Operation: 0 to 55C, Storage: -20 to 85C, Humidity: up to 95%
• Dimension mm: 58.3x25.4x25.4mm
