Video Surge Protector • F Connector
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the
shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: under 1ns• 90V, over 10ns• 12V.
• Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR...etc.
• Protects UTP Twisted Pair transmission products.

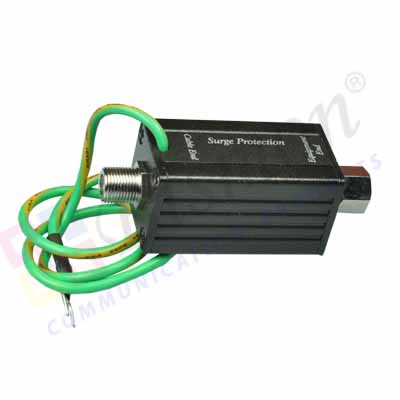

![](http://www.bismon.com/pic_product/pic_gall/SP002 Video Surge Protector-F Connector.jpg)
Specification:
• Surge Protection Attack Time: 1 ns
• Maximum Surge Voltage: 4 KV
• Surge Life: 300 surges of 100 Amps
• Normal Resistance Across Coax: 10,000 Mohm
• Surge Resistance: Approx. 0ohm
• BAND PASS: 0~1 GHZ
• Power Passing Capability: 130V DC / AC, 65 Vrms at 10 Amps
• Insertion Loss: Less than 0.2 dB
• Return Loss (75 ohms): 16dB
• Power IN Put: AC 40V(MAX), DC56V(MAX)
• Connectors: F
• Dimension (mm): 78x25x25
• Weight (g): 80
