OVERVIEW
1G PoE (Power over Ethernet) Surge Protector
SP006PH designed to protect Power-Over-Ethernet (PoE) data/communication lines in local and wide area networks up to 1Gbps (1000Base-T) transmission speeds.

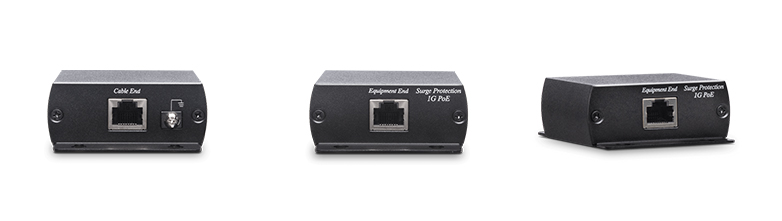

SP006PH PoE Surge Protector
• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Support Mid-Span and End Span PoE
• Response time less than 1ns
• RJ45 Jack to RJ45 Jack
• Power and signal line protection.
• 10/100/1000 Base-T CAT5e/Cat6 compatible.
• Support Mid-Span PoE and End Span PoE.
• 802.3af and 802.3at PoE (Power over Ethernet) compatible.
• Comply with IEC 61000-4-5, IEC 61000-4-2, EN61000-4-5
• Application for PoE (Power over Ethernet) protection.
• Material made from Aluminum high grade
• ESD protection: 30KV (Air), 30Kv Contact) IEC 61000-4-2, IEC 61000-4-5 compliant
• Lightning protection: 10 KA (8/20us), 20KV (8/20us) / 4 KV (10/700uS) EN61000-4-5
Application:
• Computer Control Rooms
• Educational Institutions
• Server Farms
• Commercial Offices
• Manufacturing Facilities
• Transmitter and Receiver Stations
Specification: SP006PH
• Input Interface: RJ45
• Output Interface: RJ45
• Response time: <1 ns
• ESD protection: 30KV (Air), 30Kv Contact) IEC 61000-4-2, IEC 61000-4-5 compliant
• Lightning protection: 10 KA (8/20us), 20KV (8/20us) / 4 KV (10/700uS) EN61000-4-5
• Bandwidth (Data rate): Up to 1Gb/s (Max)
• Temperature Operation: -40 to 70C, Storage: -40 to 90C, Humidity: up to 95%
• Connectors: RJ45
• Dimension (mm): 67x87x27
• Weight (g): 160
