OVERVIEW
NETWORK 16 Channel Surge Protection Device
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, DCR, Camera etc.

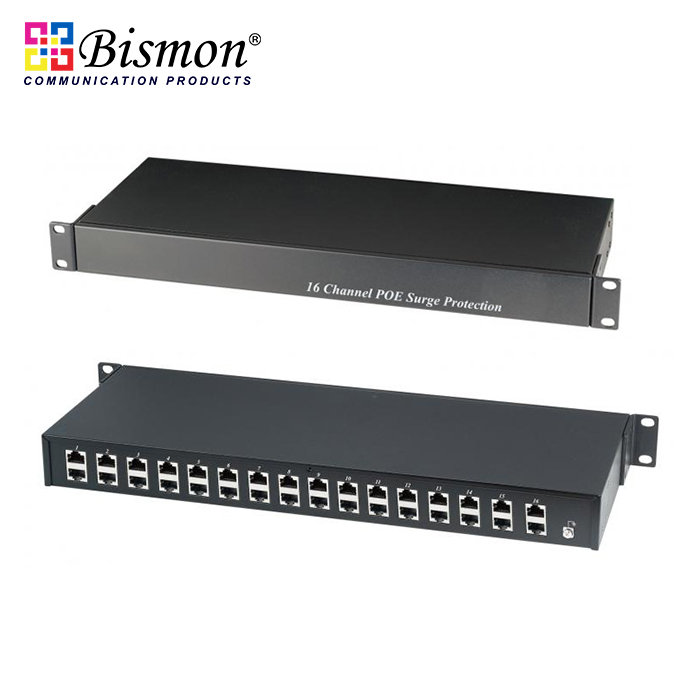

SP016N: 16 Channel Network Surge Protector for NVR in 1U Rack Mounting Panel
• 16 x RJ45 Jack to 16x RJ45 Jack.
• 10/100/1000 Base-T CAT5/CAT5e compatible.
• Provide protection for NVR, network, PC modem, server or any computer equipment with multiple inputs protection.
Specification: SP016N
• Operating Temperature -40 to 85 °C
• Connectors: 16 x RJ45 to 16 RJ45
• Dimension: 483x170x 44mm standard 1U Rack Panel
• Operating Temperature -40 to 85C -Connectors
• Dimensions (mm): 483x185.5x44(1U) (Standard 1U Rack Panel)
• Weight (g): 2200
