OVERVIEW
Outdoor Gigabit (Power over Ethernet) Surge Protector
SP006PHO is a high-quality surge protection device that special design to protect outdoor PoE/Network equipment from lightning. The product is enclosed in anIP66 outdoor housing which could be easily mounted on a wall or a pole. It supports data transmission up to 1 Gigabit and PoE device up to 90W.
SP006PHO is a surge protector designed for outdoor, Gigabit Ethernet, PoE device to protect your valuable equipment from electro-magnetic pulse or other power surge created by lightning and other strong changes in electricity.
With the IP66 cases, SP006PHO has a great ability of water and dust resistance, It is perfect for any outdoor PoE equipment protection

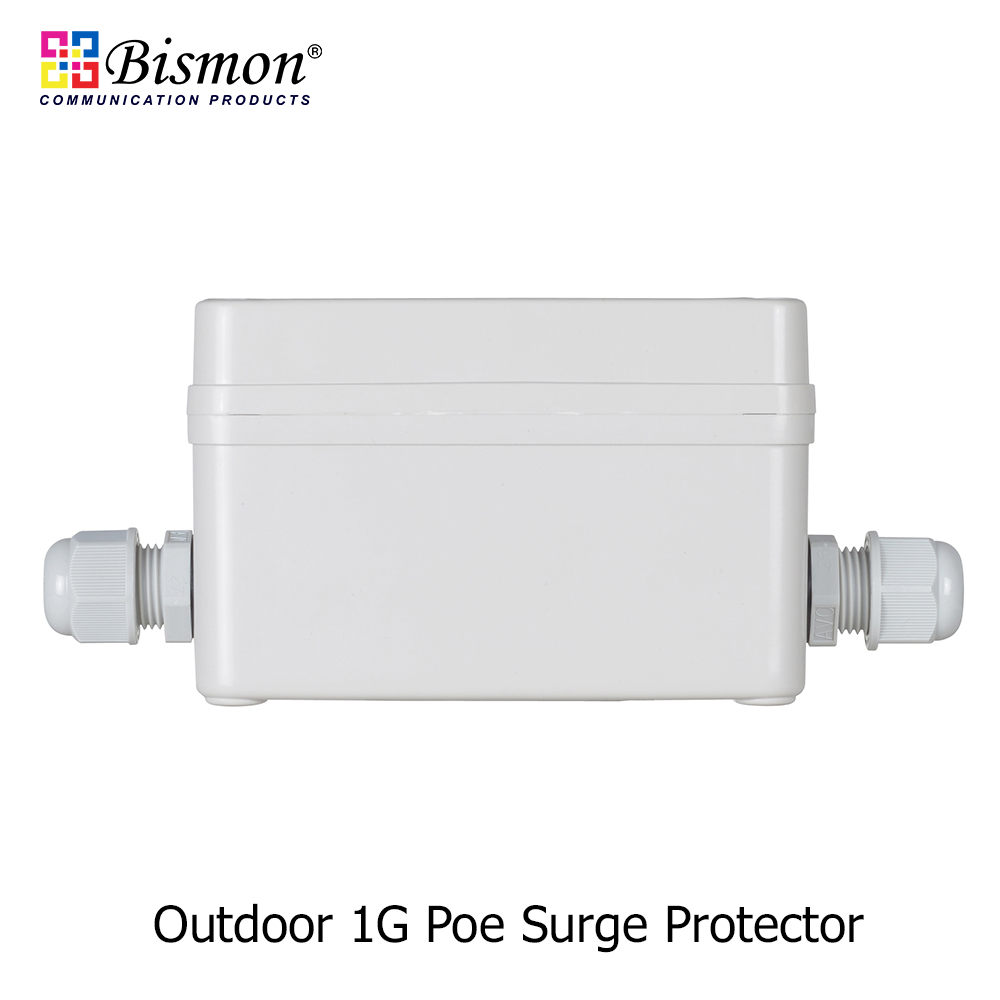

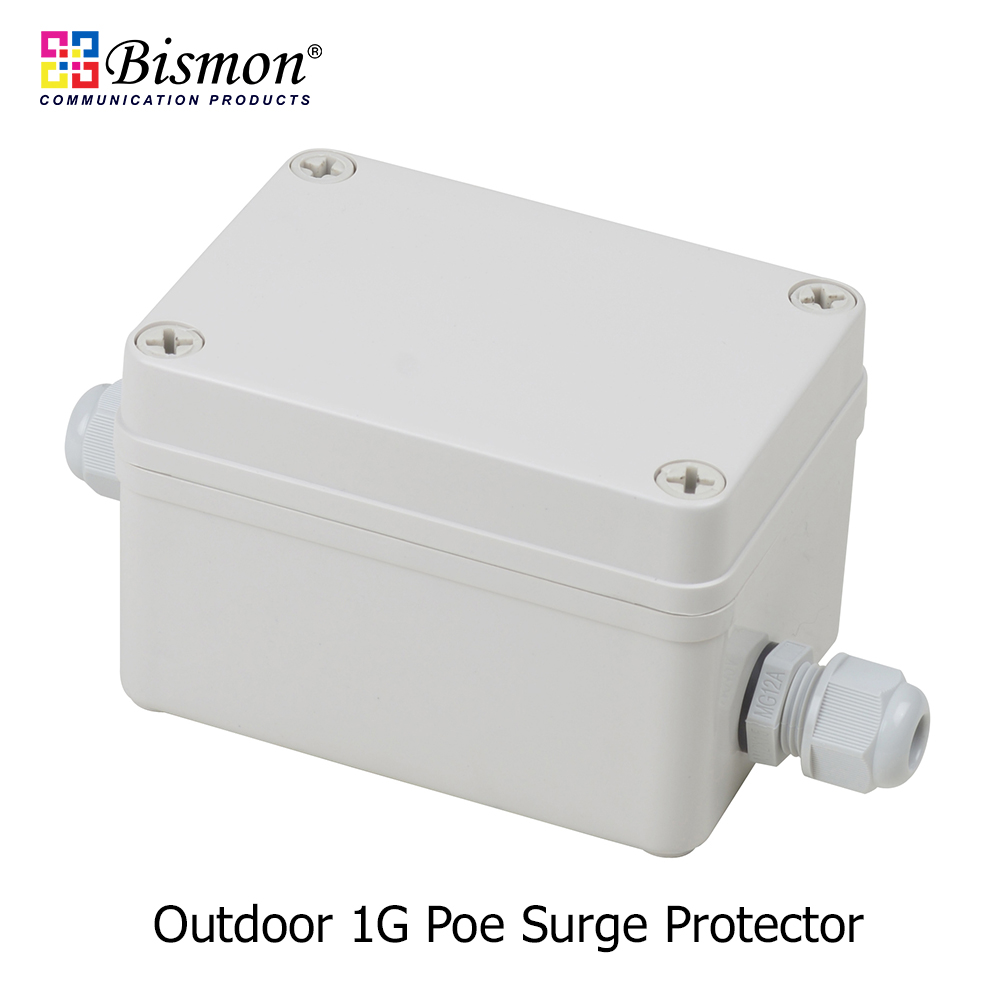

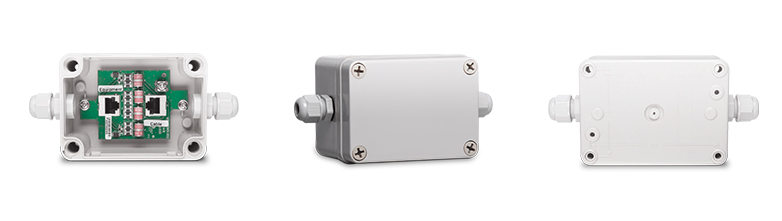

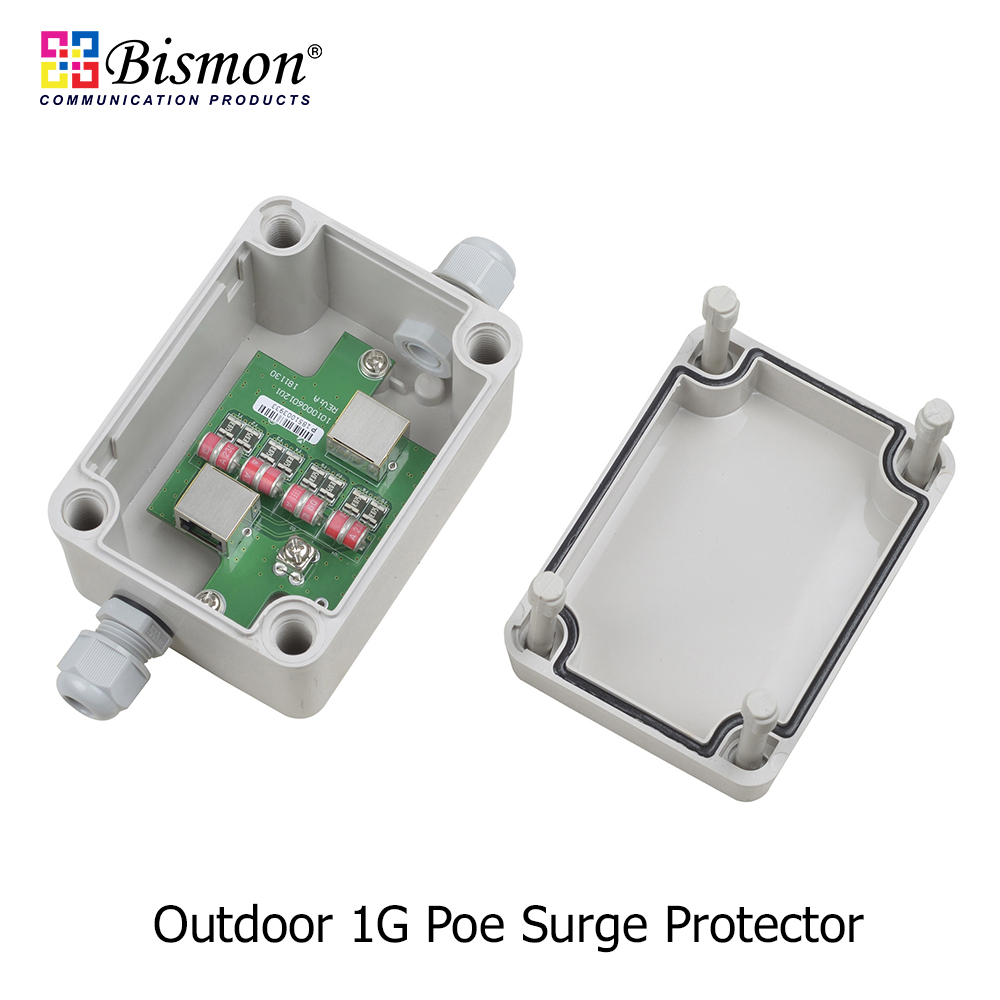

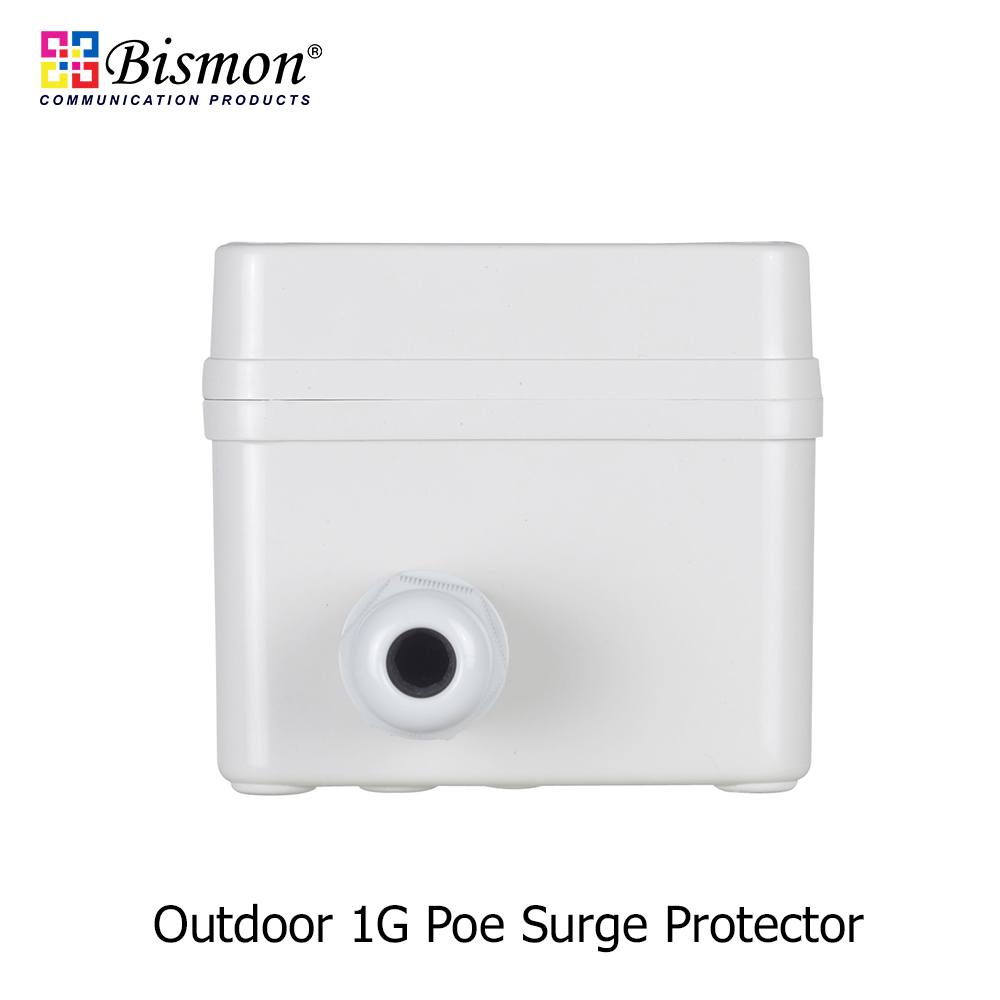

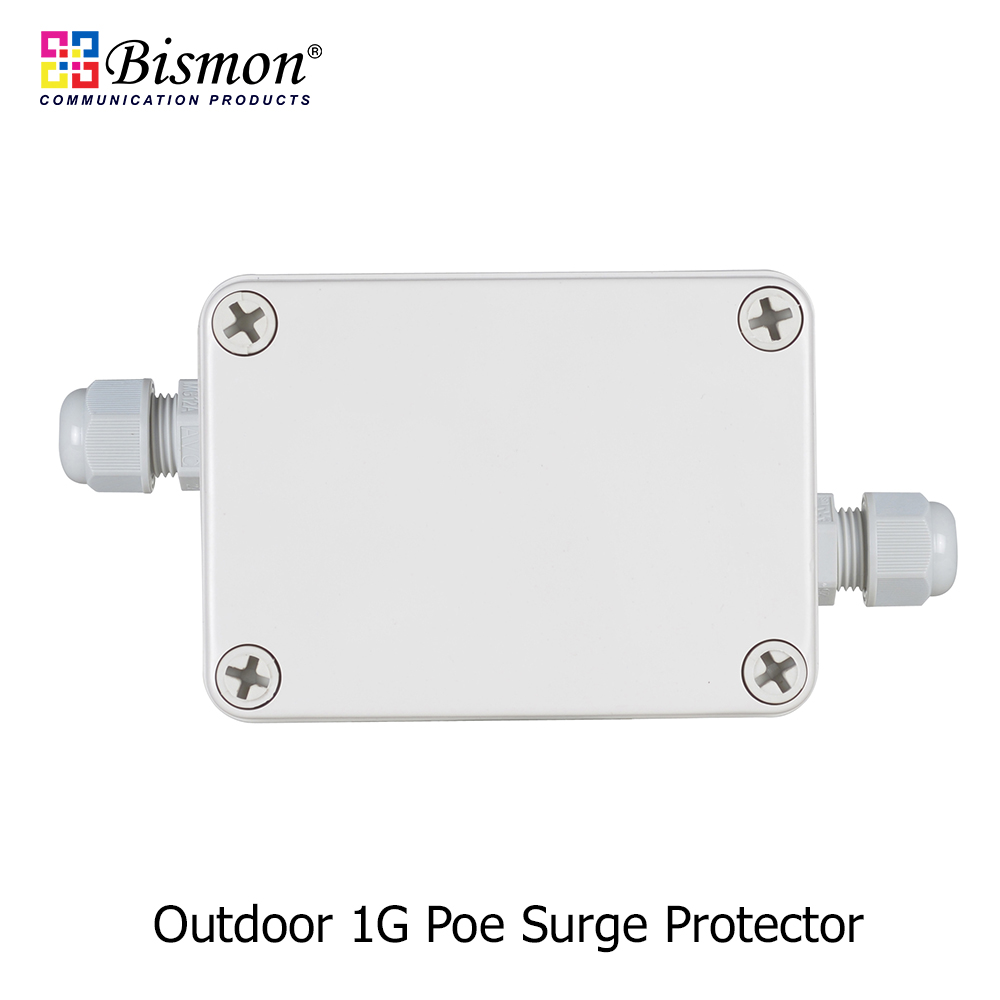

SP006PHO Outdoor PoE Surge Protector
• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• RJ45 Jack to RJ45 Jack
• Power and signal line protection.
• 10/100/1000 Base-T
• Support Mid-Span PoE and End Span PoE.
• Support 802.3af and 802.3at and IEEE 802.3bt 71W.
• Support PoE device up to 90W
• Comply with IEC 61000-4-5, IEC 61000-4-2, EN61000-4-5
• Application for PoE (Power over Ethernet) protection.

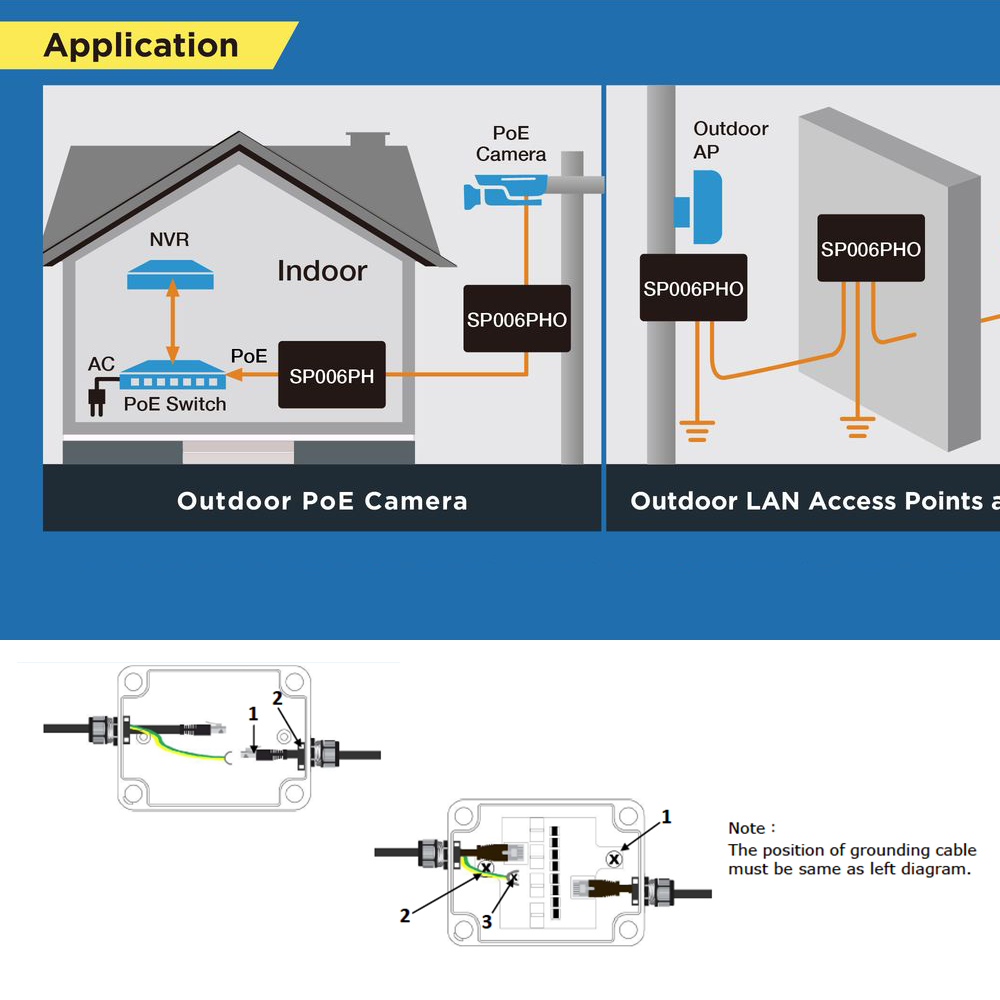

Application:
• Outdoor PoE Camera
• Outdoor AP
• Outdoor Network device
• Wireless Lan Access Point and Bridges
• Wired Switch
• IP Surveillance Camera
• VoIP Telephone
• Computer Control Rooms
• Transmitter and Receiver Stations
Specification: SP006PHO
• Input Interface: RJ45
• Output Interface: RJ45
• Response time: < 0.7 ns
• Lighting Protection: 10KV (8/20 us), 20KV (8/20 us)
• ESD Protection:30KV (Air) / 30KV(Contact)
• Operating Voltage: 60V
• Waterproof Rating: IP66
• Operating Temperature: Operation: -40 to 70C, Storage: -40 to 90C, Humidity: up to 95%
• Material: ABS
• Dimension (mm.): 80 x 166 x 70
• Weight(g): 230g
