Description:

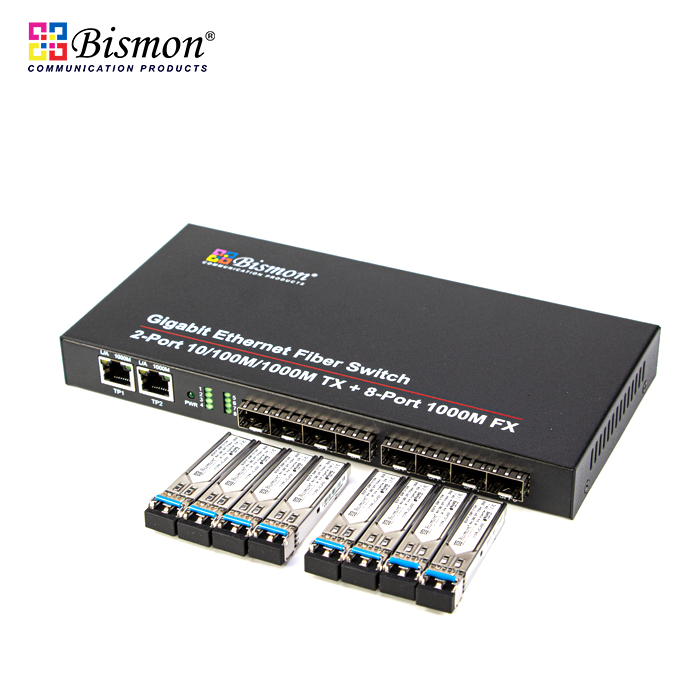

This Gigabit Ethernet Fiber Switch has 2 10/100/1000M UTP ports and 8 1000M SFP slots. The product is possessed of stable performance, excellent quality, and reasonable price because of adopting the latest IC from the USA and high-quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Key features:
- Converts optical/electrical Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports
- Auto negotiation function supports UTP ports to auto 10/100/1000M and Full duplex/Half Duplex
- Broadcast storm protection
- Supports the max 1536 bytes frame
- Small power consumption (3W), low heat, good stability
Technical Specifications:
Standards
|
IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
|
Number of Ports
|
2 Port 10/100/1000Base-Tx and 8 Port 1000Base-Fx
|
Transmission Rate
|
10 Mbps: 14880 pps, 100Mbps: 148800 pps, 1000Mbps:1488000 pps
|
Switching Mode
|
Store-and-Forward
|
Flow Control Mode
|
IEEE 802.3x full-duplex flow control and back pressure flow control
|
MAC address
|
16K
|
Frame buffer memory
|
2M
|
Bandwidth
|
20G, can be transmitted to achieve non-blocking wire-speed
|
LED Status Indicator
|
LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function
|
Cable Support
|
UTP cable: 3, 4 or Cat. 5,cat6 (the max distance up to 100m)
Fiber cable:
Multi-mode Fiber: 50/125, 62.5/125μm(the max distance up to 550m)
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
|
Power Supply
|
AC100 ~240V, 50~60Hz; DC5V 2A
|
Operating Temperature
|
0 °C to +70 °C
|
Storage Temperature
|
-20 °C to +80 °C
|
Storage Humidity
|
5% to 90% RH
|
