OVERVIEW

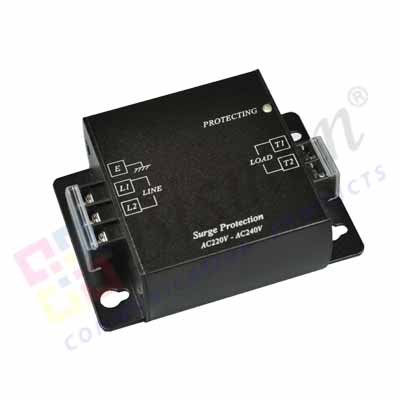

SP001P-AC220 AC Power Surge protection Device Terminal Connector
• Terminal connector to terminal connector.
• Application for protect AC220-240V.
• Providing protection for equipment or instruments with power consumption below 4Amp
Features:
• Performs a different function than grounding requirements.
• Providing protection against lightning stroke for AC power loops.
• Protects equipment from high voltage surges from nearby lightning strikes.
Specification: SP001P-AC220
Nominal peak voltage Wire: >300V
Nominal peak voltage Wire grounding: >300V
Surge Current Capacity: 6000A (8x20uS)
Surge Voltage Capacity: 6000V (1.2uS x 50 uS)
Leakage current Wire: <1mA (at300VAC)
Leakage current Wire grounding: <1mA (at300VAC)
Max. Load Current: 4A (Max)
Temperature Operation: 0 to 55C, Storage: -20 to 85C, Humidity: up to 95%
Material: Metal Black
Dimension mm.: 67 x 87 x 28.5
Weight g.: 140
