OVERVIEW |
|

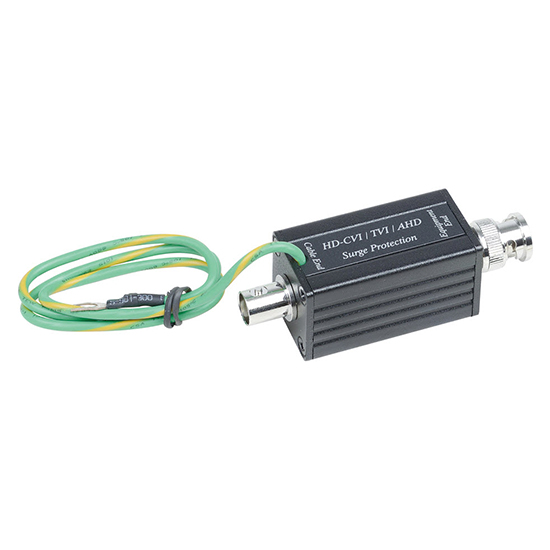

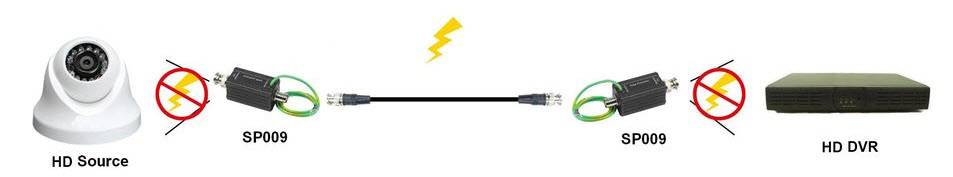

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning-caused, high-frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc =BNC male to BNC female. =Provide protection for analog HD-CVI, HD-TVI, AHD camera,DVR devices. =Comply with IEC 61000-4-5. =Built in EFT (impulse noise) , lightning protection. |
|
Specifications: |
• Input and output interface: BNC (Male) x 1 BNC (Female) x 1 |
• Surge Protection Attack Time < 1nS |
• Starting voltage surge 7V |
• Minimum Breakdown Voltage 6V |
• Maximum Clamping Voltage 25 V |
• Reference Standard IEC 61000-4-5 |
• Signal insertion loss 0.9db @ 50Mb/s |
• Maximum discharge current 2 KA ( MAX ) |
• Environmental Specifications operation: 0C to 55C, Storage: -20C to 85C, Humidity: up to 95% |
• Dimensions 79.3x25.4x25.4 mm
|
