OVERVIEW
Features:
• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: 130V, AC/DC 12V
• Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.

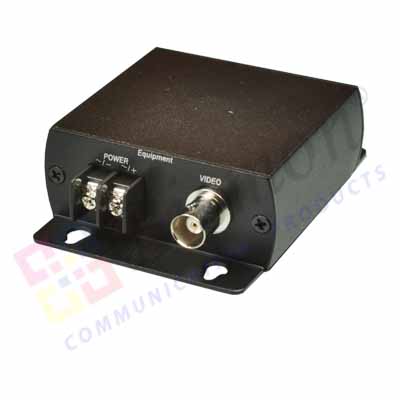

SP001VP Video & Power Surge Protection
• 3 pin terminal + BNC female to 4 pin terminal + BNC female.
• wo stage protection, AC/DC 130V, AC/DC12V
• Max power input AC 40V(MAX), DC 56V(MAX).
• Max current up to 2Amp.
Application
• CATV System
• Antenna of Television
• Video Cassette Recorders
• FM receivers
• Video Cameras and monitors
• Multiplexers and Quad Processor
Specification:
• Surge Protection Attack Time : 1 ns
• Maximum Surge Voltage : 4 KV
• Surge Life : 300 surge of 100 Amps
• Normal Resistance Across Coax : 10,000 M?
• Surge Resistance : Approx. 0?
• BAND PASS : 0~1 GHZ
• Power Passing Capability : 130V DC / AC, 65 Vrms at 10 Amps
• Insertion Loss : Less than 0.2 dB
• Return Loss (75 ohms) : 16dB
• Power IN Put : AC 40V(MAX), DC56V(MAX)
• Connector : Terminal
• Dimension (mm) : 87x67x27
• Weight (g) : 136
